Super Duplex S31803 Spiral Wound Gasket

Super Duplex S31803 Spiral Wound Gasket

Super Duplex S31803 spiral wound gasket from Kaxite Sealing is manufactured with UNS S31803 / 2205 duplex stainless steel V-shape winding and soft PTFE or graphite filler. UNS S31803 has a ferritic-austenitic microstructure with approximately 40–50% ferrite in the annealed condition. The duplex structure combines the high strength of ferritic grades with the corrosion resistance of austenitic grades. It offers superior resistance to chloride pitting and crevice corrosion compared with SS 317L, and resists seawater, most concentrations of sulfuric acid and sulfide stress corrosion cracking. Typical chemical composition: Cr 21–23%, Ni 4.5–6.5%, Mo 2.5–3.5%, C ≤0.03%, Mn ≤2%, Si ≤1%, P ≤0.035%, S ≤0.015%. Typical mechanical properties: tensile strength 810 MPa, yield strength 550 MPa, elongation 25%, density 8 g/cm³. Applications include chemical process vessels, piping, heat exchangers, food processing, oil and gas and offshore. Custom sizes, OEM marking, private-label packaging and bulk quotations available. MOQ 10 pcs, lead time 7–30 days. Send your flange specification for a firm quotation.
UNS S31803 · 2205 Duplex · Ferritic-Austenitic

Super Duplex S31803 Spiral Wound Gasket Manufacturer — Bulk Supplier, Wholesale Factory Price, Custom Sizes, MOQ 10 Pcs

Buy Super Duplex S31803 spiral wound gaskets direct from Ningbo Kaxite Sealing Materials Co., Ltd., a China-based manufacturer and exporter. UNS S31803, also known as 2205 Duplex, is a duplex stainless steel with a ferritic-austenitic microstructure that combines the high strength of ferritic grades with the corrosion resistance of austenitic grades. It offers superior resistance to chloride pitting, crevice corrosion, seawater and sulfide stress corrosion cracking, making it a preferred winding material for sour service, offshore and chemical process flange joints.

Winding material: UNS S31803 V-shape duplex stainless steel tape. Filler options: soft PTFE or graphite. Manufactured to ASME B16.20. Custom sizes, OEM marking, private-label packaging, bulk production and export documentation are available for B2B buyers.

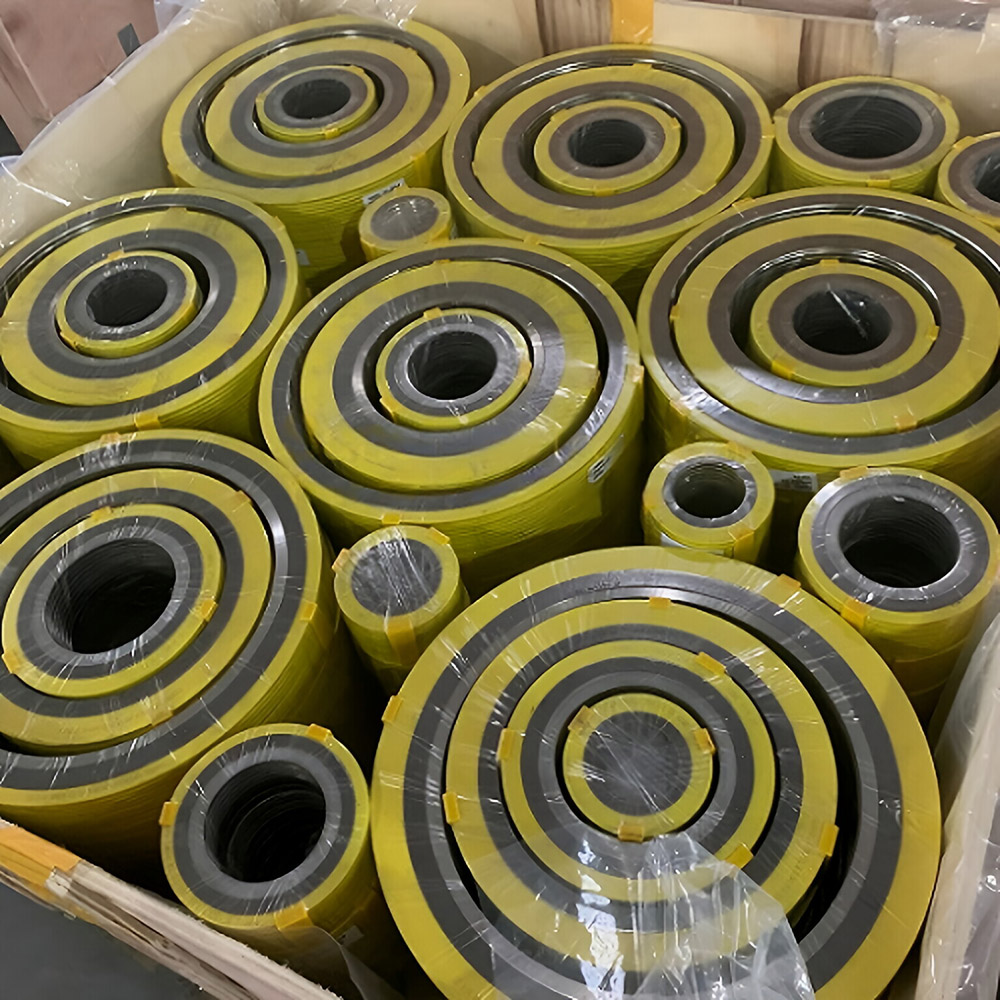

Super Duplex S31803 spiral wound gasket with UNS S31803 duplex stainless steel winding for chloride and seawater service
Super Duplex S31803 spiral wound gasket supplied by Kaxite Sealing.
UNS Number S31803
Also Known As 2205 Duplex
Microstructure 40–50% Ferrite
MOQ 10 Pcs
Chloride Pitting Superior vs 317L
Crevice Corrosion Superior vs 317L
Sulfide SCC Resistant
Seawater Outstanding
Sulfuric Acid Most Concentrations
Standard ASME B16.20

Super Duplex S31803 Spiral Wound Gasket Bulk Supplier — Request a Quote, Custom Manufacturer, Wholesale Factory Pricing

This page is written for procurement engineers, MRO buyers, offshore project sourcing teams and EPC contractors who need a reliable Super Duplex S31803 spiral wound gasket manufacturer. Whether you are comparing quotes, verifying material certificates or scheduling a bulk delivery for a sour-service or seawater project, the sections below cover the technical facts and commercial terms you need to place a firm order.

  • Bulk production of standard and non-standard S31803 gaskets.
  • OEM marking, private-label packaging and export documentation.
  • MOQ 10 pcs, lead time 7–30 days depending on size, filler and quantity.
  • Send flange standard, NPS or DN, pressure class, filler and quantity for a firm unit price.
  • Payment terms, shipping method, warranty and return policy confirmed in the quotation.
Super Duplex S31803 spiral wound gasket structure with V-shape duplex stainless steel winding and soft filler
Super Duplex S31803 gasket structure: V-shape duplex winding + soft filler.

What Is a Super Duplex S31803 Spiral Wound Gasket?

A Super Duplex S31803 spiral wound gasket is made of V-shape UNS S31803 tape and soft PTFE filler or graphite filler. It has superior resistance to chloride pitting and crevice corrosion compared with SS 317L spiral wound gaskets. The S31803 spiral wound gasket has outstanding corrosion resistance to seawater and most concentrations of sulfuric acid. In addition, it is resistant to sulfide stress corrosion cracking, which makes it suitable for sour service.

UNS S31803 is also called 2205 Duplex. It is a duplex grade with a ferritic-austenitic microstructure. The alloy consists of around 40–50% ferrite in the annealed condition. The duplex microstructure has the high strength of the ferritic grades while retaining the corrosion resistance of the austenitic grades. It is not uncommon to see the metal used as a practical solution to chloride-induced stress cracking.

Corrosion Resistance of UNS S31803

UNS S31803 is resistant to intergranular corrosion. It has better corrosion resistance than other austenitic stainless grades such as 316, with higher resistance to stress corrosion cracking than either 304 or 316 stainless grades. Pitting corrosion and crevice corrosion resistance is higher than that of 316. Due to its higher corrosion resistance, UNS S31803 has better fatigue strength in corrosive environments than other austenitic stainless steel specifications.

Intergranular Corrosion Resistant
vs SS 316 — General Better
vs SS 304 / 316 — SCC Higher Resistance
vs SS 316 — Pitting Higher
vs SS 316 — Crevice Higher
Fatigue in Corrosive Service Better

Chemical Analysis of S31803 Winding Material

The following values are typical for UNS S31803 duplex stainless steel used in spiral wound gasket winding tape. The chromium, molybdenum and nitrogen content provides the chloride pitting and crevice corrosion resistance that distinguishes S31803 from standard austenitic grades.

Element Cr Ni Mo N C Mn Si P S
Typical value (%) 21–23 4.5–6.5 2.5–3.5 0.08–0.20 ≤0.03 ≤2 ≤1 ≤0.035 ≤0.015

The combination of 21–23% chromium, 2.5–3.5% molybdenum, 0.08–0.20% nitrogen and the duplex ferritic-austenitic microstructure is what gives UNS S31803 its high resistance to chloride pitting and crevice corrosion. For a specific heat analysis, request the material certificate with your order.

Mechanical Properties of S31803

The following values are typical for UNS S31803 duplex stainless steel in the annealed condition. The duplex structure delivers a significantly higher yield strength than standard austenitic grades such as SS 316, which allows a more compact flange joint design at the same pressure rating.

Ultimate Tensile Strength 810MPa High strength from duplex structure
Yield Strength 550MPa Higher than austenitic grades
Elongation 25% Adequate ductility for winding
Density 8g/cm³ Typical for duplex stainless

S31803 vs SS 316L vs SS 317L — Which Winding Material Should You Specify?

The choice of winding material is driven by the process medium, chloride concentration, temperature, sour service requirement and design life. Use the comparison below as a starting point, then send the exact medium, chloride level and operating temperature for confirmation.

Property S31803 (2205 Duplex) SS 317L SS 316L
Microstructure Ferritic-austenitic (40–50% ferrite) Austenitic Austenitic
Chloride pitting resistance Superior Good Moderate
Crevice corrosion resistance Superior Good Moderate
Sulfide stress corrosion cracking Resistant Limited Not recommended
Seawater resistance Outstanding Limited Not recommended
Yield strength 550 MPa ~205 MPa ~205 MPa
Typical service Offshore, sour service, seawater, chemical Chemical, moderate chloride General chemical, non-chloride
Selection note: If your flange joint sees chlorides above trace levels, sour service, seawater or offshore conditions, S31803 is normally specified instead of 316L or 317L. If the service is non-chloride and non-sour, standard austenitic grades remain a lower-cost option. Send the medium and operating temperature for a firm recommendation.

Applications of Super Duplex S31803 Spiral Wound Gasket

Super Duplex S31803 spiral wound gaskets are used across process industries where the flange joint must resist chloride pitting, crevice corrosion, sulfide stress corrosion cracking, seawater or sour service.

01

Chemical Process Vessels

Reactors, columns, separators and pressure vessels handling chlorides, sulfuric acid and aggressive chemical media.

02

Piping and Heat Exchangers

Shell and tube heat exchangers, channel covers, floating heads and process piping in chloride-bearing service.

03

Food Processing

Processing and storage equipment where S31803 provides high strength and chloride resistance for clean service.

04

Oil Field and Gas

Upstream, midstream and downstream flanged joints where sour service and sulfide stress corrosion cracking are concerns.

05

Offshore and Seawater

Offshore platforms, seawater cooling systems and marine piping where chloride pitting and crevice corrosion are critical.

06

Sour Service

Hydrocarbon service where the presence of H₂S requires a winding material resistant to sulfide stress corrosion cracking.

Filler Options for Super Duplex S31803 Spiral Wound Gaskets

The winding alloy is only one half of the gasket. The filler must also be compatible with the process medium and operating temperature. For S31803 the standard fillers are soft PTFE and graphite, with other options quoted on request.

PTFE

Soft PTFE Filler

Excellent chemical resistance against most acids, alkalis, organic acids, inorganic acids and solvents. Preferred for chemical, acid, alkali and low-temperature service when the gasket is paired with a duplex winding.

Graphite

Flexible Graphite Filler

High-temperature sealing performance for steam, hydrocarbon and refinery service. Preferred when the operating temperature is above the PTFE service envelope and the medium is compatible with graphite.

If your service is both sour and high-temperature, send the H₂S partial pressure, chloride concentration, operating temperature and pressure so we can confirm the correct filler and winding combination.

Five Items We Need to Quote a Super Duplex S31803 Spiral Wound Gasket

Send the following five items with your enquiry. If you already have a flange drawing or an existing gasket sample, attach it and we will match it directly. Our sales engineers reply with a firm unit price, lead time and available samples.

  1. 1

    Nominal Pipe Size or Gasket Dimensions

    NPS, DN or specific inner and outer diameters for non-standard joints.

  2. 2

    Pressure Rating and Flange Standard

    Class 150, 300, 600, 900, 1500, 2500 or PN10 to PN250, plus the flange standard such as ASME B16.5 or EN 1092.

  3. 3

    Filler Material

    Soft PTFE or graphite as standard; other fillers quoted on request depending on the medium and temperature.

  4. 4

    Inner and Outer Ring Material

    Carbon steel painted as standard; SS 304, SS 316 or S31803 available for corrosive environments. Specify private-label or OEM marking if required.

  5. 5

    Quantity and Destination Port

    Order quantity and destination port so we can quote FOB, CIF or freight-inclusive pricing. MOQ 10 pieces.

Commercial terms: MOQ 10 pieces. Lead time 7–30 days depending on size, filler and quantity. Payment terms, warranty and return policy, and certifications are confirmed in the quotation based on order value, destination and material grade. Shipping method: FOB, CIF or freight-inclusive quotation on request. Send your specification for a firm quotation and confirmed delivery date.

FAQ for Buyers Sourcing Super Duplex S31803 Spiral Wound Gaskets

What is a Super Duplex S31803 spiral wound gasket?
A Super Duplex S31803 spiral wound gasket is made of V-shape UNS S31803 duplex stainless steel tape and soft PTFE or graphite filler. UNS S31803, also known as 2205 Duplex, has a ferritic-austenitic microstructure with approximately 40–50% ferrite in the annealed condition. It offers superior resistance to chloride pitting, crevice corrosion, seawater and sulfide stress corrosion cracking compared with standard austenitic grades.
What is the difference between UNS S31803 and 2205 Duplex?
UNS S31803 and 2205 Duplex refer to the same duplex stainless steel grade. UNS S31803 is the unified numbering system designation; 2205 is the common commercial name. Both describe a ferritic-austenitic stainless steel with approximately 21–23% chromium, 4.5–6.5% nickel and 2.5–3.5% molybdenum, used for chloride and sour service.
Is S31803 better than SS 316L for seawater service?
Yes. UNS S31803 offers superior resistance to chloride pitting and crevice corrosion compared with SS 316L, and it is resistant to seawater and most concentrations of sulfuric acid. SS 316L is not recommended for seawater or sour service. For offshore, marine and chloride-bearing flange joints, S31803 is normally the correct winding material.
Is S31803 suitable for sour service?
UNS S31803 is resistant to sulfide stress corrosion cracking, which makes it suitable for sour service in oil and gas applications. The duplex microstructure provides higher resistance to stress corrosion cracking than 304 or 316. Send the H₂S partial pressure, chloride concentration and operating temperature so we can confirm the correct winding and filler combination.
What filler materials are available for S31803 spiral wound gaskets?
Soft PTFE and graphite are the standard fillers for Super Duplex S31803 spiral wound gaskets. PTFE is preferred for chemical, acid, alkali and low-temperature service. Graphite is preferred for high-temperature steam, hydrocarbon and refinery service. Other fillers are quoted on request depending on the process medium and temperature.
What is the MOQ and lead time for a Super Duplex S31803 gasket order?
MOQ is 10 pieces. Typical lead time is 7–30 days depending on size, filler and order quantity. Custom sizes, OEM marking and private-label packaging are available. Send your flange specification for a firm quotation and confirmed delivery date.
Can you custom manufacture Super Duplex S31803 spiral wound gaskets?
Yes. Kaxite Sealing manufactures custom Super Duplex S31803 spiral wound gaskets in non-standard sizes, ASME B16.20 constructions and various inner and outer ring materials. OEM marking and private-label packaging are available for B2B buyers. Send the drawing or sample for matching.

Request a Bulk Quotation for Super Duplex S31803 Spiral Wound Gaskets

Send your flange standard, nominal pipe size, pressure class, filler, inner and outer ring material and quantity. Our sales engineers reply with a firm unit price, lead time and available samples. For urgent sour-service or offshore requirements, contact us by phone or WhatsApp.
