Incoloy 825 Spiral Wound Gasket

Incoloy 825 Spiral Wound Gasket

Incoloy 825 spiral wound gasket from Kaxite Sealing is manufactured with UNS N08825 V-shape winding and PTFE or graphite filler, combined with an inner ring or outer centering guide ring. Incoloy 825 / UNS N08825 is an austenitic nickel-iron-chromium-molybdenum-copper alloy containing high levels of chromium, nickel, copper and molybdenum to provide high corrosion resistance in both moderately oxidizing and moderately reducing environments. The titanium addition stabilizes the alloy against intergranular corrosion. It offers exceptional resistance to chloride stress corrosion cracking, crevice corrosion and general corrosion, with high temperature strength and high creep rupture strength. Typical chemical composition: Fe ≥22%, Cr 19–23.5%, Ni 38–46%, C ≤0.05%, Al ≤0.2%, Ti ≤1.2%. Typical mechanical properties: tensile strength 610 MPa, yield strength 255 MPa, elongation 30%, density 8.15 g/cm³. Applications include chemical processing components, pollution control, oil and gas recovery, pickling tank parts and nuclear fuel processing. Custom sizes, OEM marking, private-label packaging and bulk quotations available. MOQ 10 pcs, lead time 7–30 days. Send your flange specification for a firm quotation.
UNS N08825 · Ni-Fe-Cr-Mo-Cu · Ti-Stabilized Sour Service · Chloride SCC · ASME B16.20

Incoloy 825 Spiral Wound Gasket Manufacturer — Custom Bulk Supplier, Wholesale Factory Price, MOQ 10 Pcs

Buy Incoloy 825 spiral wound gaskets direct from Ningbo Kaxite Sealing Materials Co., Ltd., a China-based manufacturer and exporter. Incoloy 825 / UNS N08825 is an austenitic nickel-iron-chromium-molybdenum-copper alloy with a titanium addition that stabilizes the alloy against intergranular corrosion. It offers exceptional resistance to chloride stress corrosion cracking, crevice corrosion and general corrosion, with high temperature strength and high creep rupture strength, making it one of the two most important nickel alloys in the oil and gas industry alongside Inconel 625.

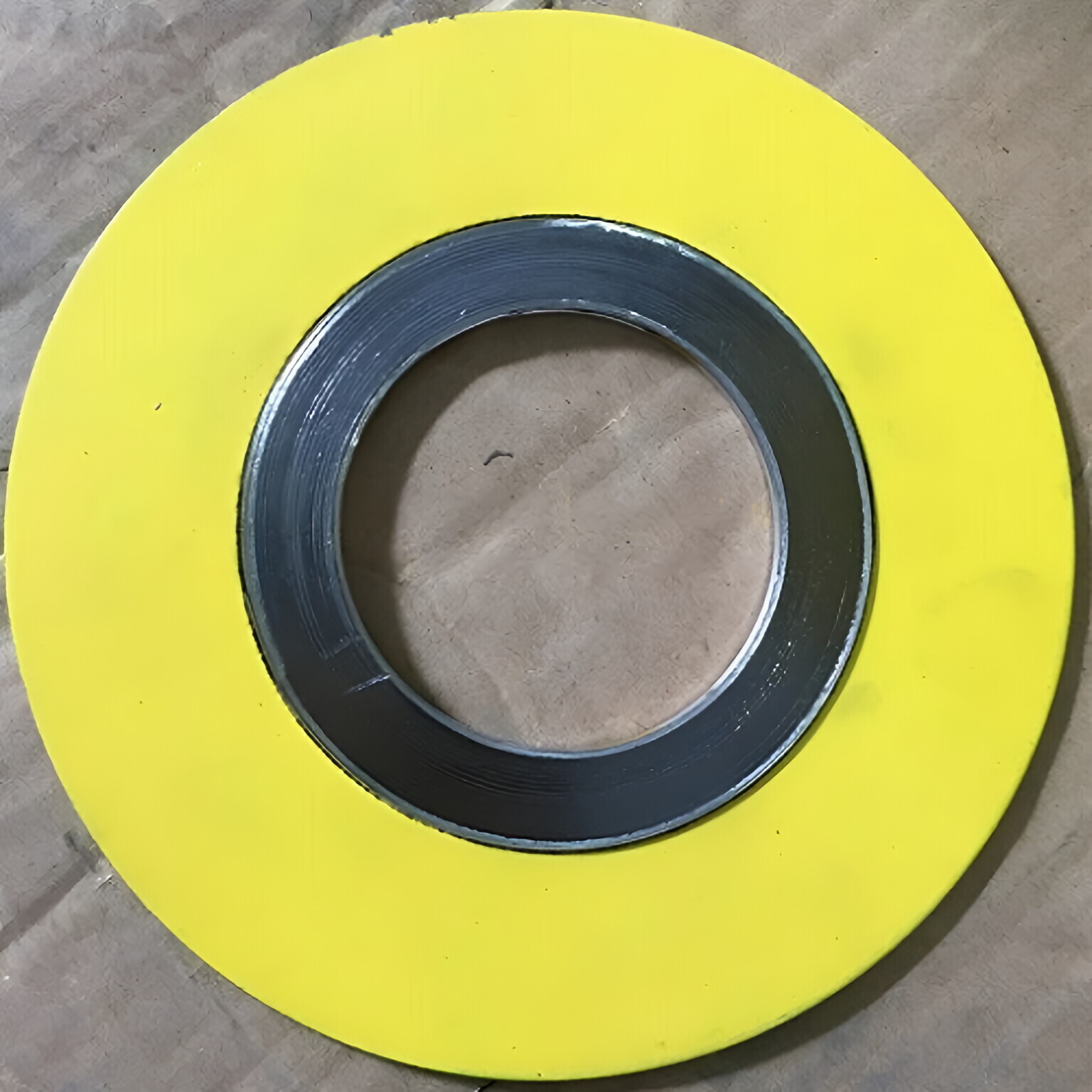

Incoloy 825 spiral wound gasket with UNS N08825 nickel alloy winding and PTFE or graphite filler
UNS Number N08825 Incoloy 825
Nickel 38–46% Reducing + oxidizing
Chromium 19–23.5% Oxidizing resistance
Stabilizer Ti ≤1.2% Anti-intergranular
MOQ 10 Pcs Bulk available
Standard ASME B16.20 Spiral wound gasket

Incoloy 825 Spiral Wound Gasket Bulk Supplier — Request a Quote, Custom Manufacturer, Wholesale Factory Pricing

This page is written for procurement engineers, MRO buyers, chemical and petrochemical project sourcing teams and EPC contractors who need a reliable Incoloy 825 spiral wound gasket manufacturer. Whether you are comparing quotes, verifying material certificates or scheduling a bulk delivery for a sour-service, pickling or nuclear-fuel-processing project, the sections below cover the technical facts and commercial terms you need to place a firm order.

01

Ni 38–46% Base

High nickel content combined with molybdenum and copper provides corrosion resistance in reducing environments that stainless steel cannot match.

02

Chloride SCC

Exceptional resistance to chloride stress corrosion cracking, crevice corrosion and general corrosion in chemical and oil and gas service.

03

Ti-Stabilized

The titanium addition stabilizes the alloy against intergranular corrosion — important for hot and acidic process streams.

04

High-Temp Strength

High temperature strength and high creep rupture strength for demanding chemical, refinery and nuclear service.

05

Custom + OEM

Custom sizes, non-standard dimensions, OEM marking and private-label packaging for B2B and project buyers.

06

Bulk Supply

MOQ 10 pcs, lead time 7–30 days, FOB / CIF / freight-inclusive quotation on request, worldwide shipping.

What Is an Incoloy 825 Spiral Wound Gasket?

An Incoloy 825 spiral wound gasket consists of a winding ring made of V-shape Incoloy 825 strip tape and PTFE or graphite filler, then combined with an inner ring or outer centering guide ring. Incoloy 825 spiral wound gasket has enhanced corrosion resistance in a wide range of environments, high temperature strength and high creep rupture strength.

In the oil and gas industry, the two most important nickel alloys are Inconel 625 and Incoloy 825. Incoloy 825 is an austenitic nickel-iron-chromium-molybdenum-copper alloy containing high levels of chromium, nickel, copper and molybdenum to provide high levels of corrosion resistance to both moderately oxidizing and moderately reducing environments. This balance of alloying elements grants this alloy exceptional resistance to chloride stress corrosion cracking, as well as crevice corrosion and general corrosion. The high level of nickel combined with the molybdenum and copper content produces substantially improved corrosion resistance in corrosive environments such as reducing environments compared with stainless steel. The addition of titanium in this alloy also helps to stabilize the alloy against intergranular corrosion.

Incoloy 825 spiral wound gasket structure with UNS N08825 V-shape winding, PTFE or graphite filler and inner ring or outer guide ring
Incoloy 825 spiral wound gasket structure: UNS N08825 V-shape winding + PTFE or graphite filler + inner ring or outer guide ring.

Chemical Analysis of Incoloy 825 / UNS N08825

The following values are typical for Incoloy 825 alloy used in spiral wound gasket winding tape. The nickel, chromium, molybdenum and copper balance is what gives UNS N08825 its resistance to both reducing and oxidizing environments, and the titanium addition stabilizes the alloy against intergranular corrosion.

Element Fe Cr Ni Mo Cu C Al Ti
Typical value (%) ≥22 19–23.5 38–46 2.5–3.5 1.5–3.0 ≤0.05 ≤0.2 ≤1.2

Molybdenum and copper are the two elements that give Incoloy 825 its resistance to reducing environments, while chromium and nickel provide the oxidizing resistance. Titanium stabilizes the alloy against intergranular corrosion. For a specific heat analysis, request the material certificate with your order. Composition and mechanical values will be confirmed against the mill certificate before shipment.

Mechanical Properties of Incoloy 825

The following values are typical for Incoloy 825 in the annealed condition. The alloy combines high temperature strength with high creep rupture strength, making it suitable for chemical, refinery and nuclear service where both temperature and corrosive media are present.

Ultimate Tensile Strength 610MPa
Yield Strength 255MPa
Elongation 30%
Density 8.15g/cm³

Incoloy 825 vs Inconel 625 — Which Nickel Alloy Should You Specify?

Incoloy 825 and Inconel 625 are the two most important nickel alloys in the oil and gas industry, but they are not interchangeable. The choice depends on the process medium, temperature, sour service requirement and cost target. Use the comparison below as a starting point, then send the exact medium and operating conditions for a firm recommendation.

Property Incoloy 825 / UNS N08825 Inconel 625 / UNS N06625
Base chemistry Austenitic Ni-Fe-Cr-Mo-Cu with Ti stabilization Ni-Cr-Mo-Nb alloy
Reducing environment Excellent — Cu + Mo + high Ni Good — Mo + Nb
Oxidizing environment Very good — Cr + Ni Excellent — higher Cr + Mo + Nb
Chloride SCC Exceptional Exceptional
Creep rupture strength High Higher
Typical gasket service Chemical processing, pollution control, oil and gas recovery, pickling, nuclear fuel Sour service, marine, high-temperature aerospace and chemical
Cost positioning Lower cost of the two Premium when Nb and higher Mo are required

If the medium is moderately reducing or moderately oxidizing, Incoloy 825 is normally the cost-effective choice. If the service is highly corrosive, high-temperature or requires maximum creep rupture strength, Inconel 625 is specified instead. Send the medium, temperature and pressure for a firm recommendation.

Applications of Incoloy 825 Spiral Wound Gasket

Incoloy 825 spiral wound gaskets are well used for chemical processing components, pollution control, oil and gas recovery, pickling tank parts and nuclear fuel processing. The alloy is specified when the flange joint must handle both moderately reducing and moderately oxidizing media, chloride stress corrosion cracking or high-temperature service.

Chemical Processing Components

Reactors, columns, heat exchangers, piping and vessels handling mixed acid, chloride and oxidizing media.

Pollution Control

Flue gas desulfurization, scrubber and wastewater systems where chloride and acid resistance are required.

Oil and Gas Recovery

Upstream and midstream flanged joints where sour service, CO₂ and chloride-bearing production fluids are present.

Pickling Tank Parts

Sulfuric and mixed-acid pickling lines where stainless steel would suffer rapid attack.

Nuclear Fuel Processing

Nuclear fuel reprocessing and related chemical service where chloride SCC and intergranular corrosion must be avoided.

Marine and Offshore

Seawater and marine flanged connections where chloride pitting and crevice corrosion are critical.

Incoloy 825 spiral wound gaskets installed on chemical processing, oil and gas and pickling line flanged joints
Incoloy 825 spiral wound gaskets for chemical processing, oil and gas recovery and pickling service.

Filler Options for Incoloy 825 Spiral Wound Gaskets

The winding alloy is only one half of the gasket. The filler must also be compatible with the process medium and operating temperature. For Incoloy 825 the standard fillers are PTFE and graphite, with other options quoted on request.

PTFE

Soft PTFE Filler

Excellent chemical resistance against most acids, alkalis, organic acids, inorganic acids and solvents. Preferred for chemical, pickling, acid and low-temperature service when the gasket is paired with a nickel alloy winding.

Graphite

Flexible Graphite Filler

High-temperature sealing performance for steam, hydrocarbon and refinery service. Preferred when the operating temperature is above the PTFE service envelope and the medium is compatible with graphite.

If your service is sour, high-temperature or chloride-bearing, send the H₂S partial pressure, chloride concentration, operating temperature and pressure so we can confirm the correct filler and winding combination.

Five Items We Need to Quote an Incoloy 825 Spiral Wound Gasket

Send the following five items with your enquiry. If you already have a flange drawing or an existing gasket sample, attach it and we will match it directly. Our sales engineers reply with a firm unit price, lead time and available samples.

1

Nominal Pipe Size or Gasket Dimensions

NPS, DN or specific inner and outer diameters for non-standard joints.

2

Pressure Rating and Flange Standard

Class 150, 300, 600, 900, 1500, 2500 or PN10 to PN250, plus the flange standard such as ASME B16.5 or EN 1092.

3

Filler Material

PTFE or graphite as standard; other fillers quoted on request depending on the medium and temperature.

4

Inner and Outer Ring Material

Carbon steel painted as standard; SS 304, SS 316 or Incoloy 825 available for corrosive environments. Specify private-label or OEM marking if required.

5

Quantity and Destination Port

Order quantity and destination port so we can quote FOB, CIF or freight-inclusive pricing. MOQ 10 pieces.

Commercial terms: MOQ 10 pieces. Lead time 7–30 days depending on size, filler and quantity. Payment terms, warranty and return policy, and certifications are confirmed in the quotation based on order value, destination and material grade. Shipping method: FOB, CIF or freight-inclusive quotation on request. Send your specification for a firm quotation and confirmed delivery date.

FAQ for Buyers Sourcing Incoloy 825 Spiral Wound Gaskets

What is an Incoloy 825 spiral wound gasket?
An Incoloy 825 spiral wound gasket consists of a winding ring made of V-shape Incoloy 825 / UNS N08825 strip tape and PTFE or graphite filler, then combined with an inner ring or outer centering guide ring. Incoloy 825 is an austenitic nickel-iron-chromium-molybdenum-copper alloy with a titanium addition that stabilizes the alloy against intergranular corrosion. It offers exceptional resistance to chloride stress corrosion cracking, crevice corrosion and general corrosion, with high temperature strength and high creep rupture strength.
Is Incoloy 825 better than Inconel 625 for gasket service?
They are not interchangeable. Incoloy 825 and Inconel 625 are the two most important nickel alloys in the oil and gas industry. Incoloy 825 contains high nickel, chromium, copper and molybdenum for corrosion resistance in both moderately reducing and moderately oxidizing environments, and is generally the lower-cost choice. Inconel 625 adds niobium and higher molybdenum for maximum corrosion and creep rupture strength in highly corrosive or high-temperature service. Send the medium and operating conditions for a firm recommendation.
Is Incoloy 825 resistant to chloride stress corrosion cracking?
Yes. The high nickel content combined with molybdenum and copper gives Incoloy 825 exceptional resistance to chloride stress corrosion cracking, as well as crevice corrosion and general corrosion. This makes it suitable for chemical, oil and gas and marine service where chlorides are present. Send the chloride concentration and operating temperature so we can confirm the correct winding and filler combination.
Why does Incoloy 825 contain titanium?
The titanium addition in Incoloy 825 stabilizes the alloy against intergranular corrosion. The typical titanium content is ≤1.2%, alongside Fe ≥22%, Cr 19–23.5%, Ni 38–46%, Mo 2.5–3.5%, Cu 1.5–3.0%, C ≤0.05% and Al ≤0.2%. Stabilization is important in hot and acidic process streams where unstabilized alloys could suffer grain boundary attack.
What filler materials are available for Incoloy 825 spiral wound gaskets?
PTFE and graphite are the standard fillers for Incoloy 825 spiral wound gaskets. PTFE is preferred for chemical, pickling, acid and low-temperature service. Graphite is preferred for high-temperature steam, hydrocarbon and refinery service. Other fillers are quoted on request depending on the process medium and temperature.
What is the MOQ and lead time for an Incoloy 825 gasket order?
MOQ is 10 pieces. Typical lead time is 7–30 days depending on size, filler and order quantity. Custom sizes, OEM marking and private-label packaging are available. Send your flange specification for a firm quotation and confirmed delivery date.
Can you custom manufacture Incoloy 825 spiral wound gaskets?
Yes. Kaxite Sealing manufactures custom Incoloy 825 spiral wound gaskets in non-standard sizes, ASME B16.20 constructions and various inner and outer ring materials. OEM marking and private-label packaging are available for B2B buyers. Send the drawing or sample for matching.

Request a Bulk Quotation for Incoloy 825 Spiral Wound Gaskets

Send your flange standard, nominal pipe size, pressure class, filler, inner and outer ring material and quantity. Our sales engineers reply with a firm unit price, lead time and available samples. For urgent chemical, sour-service or nuclear requirements, contact us by phone or WhatsApp.
