Style CG Spiral Wound Gasket

Style CG Spiral Wound Gasket

Style CG spiral wound gasket from Kaxite Sealing is a general-purpose semi-metallic gasket with a V-shape metallic winding and a solid outer guide ring. The outer ring centers the gasket on the flange bolt circle, resists blowout and provides a compression stop. Suitable for flat face and raised face flanges up to and including ASME Class 2500. Standard gasket thickness 4.5 mm (0.175") with 3.2 mm (0.125") solid outer ring, unless otherwise specified. Winding alloys: SS 304, 304L, 316, 316L, 316Ti, 310, 321, 347, 410, Inconel 600/625, Monel 400, Titanium, Nickel, Incoloy 800/825, Alloy 20, Hastelloy B2/C276. Fillers: flexible graphite, PTFE, non-asbestos or vermiculite. Manufactured to ASME B16.5, BS 1560, BS 10, ASME B16.47 Series A/B, BS 4504 and DIN flange standards. MOQ 10 pcs, lead time 7–30 days, custom sizes and OEM marking available. Send your flange specification for a firm quotation.
ASME B16.20 · Class 150–2500 · Flat Face / Raised Face

Style CG Spiral Wound Gasket Supplier — Custom Manufacturer, Bulk Quote, Wholesale Factory Price

Buy Style CG spiral wound gaskets direct from Ningbo Kaxite Sealing Materials Co., Ltd., a China-based manufacturer and exporter. The CG construction combines a V-shape metallic winding with a solid outer guide ring that centers the gasket on the flange bolt circle, resists blowout and provides a compression stop. Suitable for flat face and raised face flanges up to and including ASME Class 2500.

Winding alloys include SS 304, 304L, 316, 316L, 316Ti, 310, 321, 347, 410, Inconel 600/625, Monel 400, Titanium, Nickel, Incoloy 800/825, Alloy 20 and Hastelloy B2/C276. Fillers include flexible graphite, PTFE, non-asbestos and vermiculite. Custom sizes, OEM marking, private-label packaging, bulk production and export documentation are available for B2B buyers.

Style CG spiral wound gasket with solid outer guide ring for ASME B16.20 flat face and raised face flanges
Style CG spiral wound gasket with solid outer guide ring.
Design Standard ASME B16.20
Pressure Class 150 – 2500
Gasket Thickness 4.5 mm / 0.175"
Outer Ring 3.2 mm / 0.125"
Flange Type Flat Face / Raised Face
MOQ 10 pcs

Style CG Spiral Wound Gasket Bulk Supplier — MOQ, Lead Time, Custom Sizes and Wholesale Factory Pricing

This page is written for procurement engineers, MRO buyers and project sourcing teams who need a reliable Style CG spiral wound gasket manufacturer. Whether you are comparing quotes, verifying flange standard compatibility or scheduling a bulk delivery, the sections below cover the technical facts and commercial terms you need to place a firm order.

01

Bulk Production Capacity

Production of standard and non-standard CG gaskets in SS 304, 316L and specialty alloys. Volume orders scheduled against your delivery window.

02

Custom Sizes and OEM Marking

Non-standard inner and outer diameters, custom outer ring dimensions, private-label packaging and customer-specified marking and stamping.

03

Lead Time and Shipping

Typical lead time 7–30 days depending on size, alloy, filler and quantity. FOB, CIF and freight-inclusive quotations available on request.

04

Quotation Response

Send flange standard, NPS or DN, pressure class, winding alloy, filler, ring material and quantity. Sales engineers respond with a firm unit price and available samples.

What Is a Style CG Spiral Wound Gasket?

A Style CG spiral wound gasket is a semi-metallic gasket made from a V-shape metallic winding and a solid outer guide ring. The outer ring accurately centers the gasket on the flange bolt circle, provides radial strength to prevent gasket blowout and acts as a compression stop. Style CG is a general-purpose gasket suitable for use with flat face and raised face flanges up to and including ASME Class 2500.

Because the CG design has no inner ring, the winding bore is set by the winding itself. For Class 900 and above, an internal ring is recommended — in that case the CGI style is specified instead. Style CG gaskets are precision engineered for flanged joints, heat exchangers, boiler handholes, manholes and high-temperature applications, and offer resistance to corrosive and toxic elements.

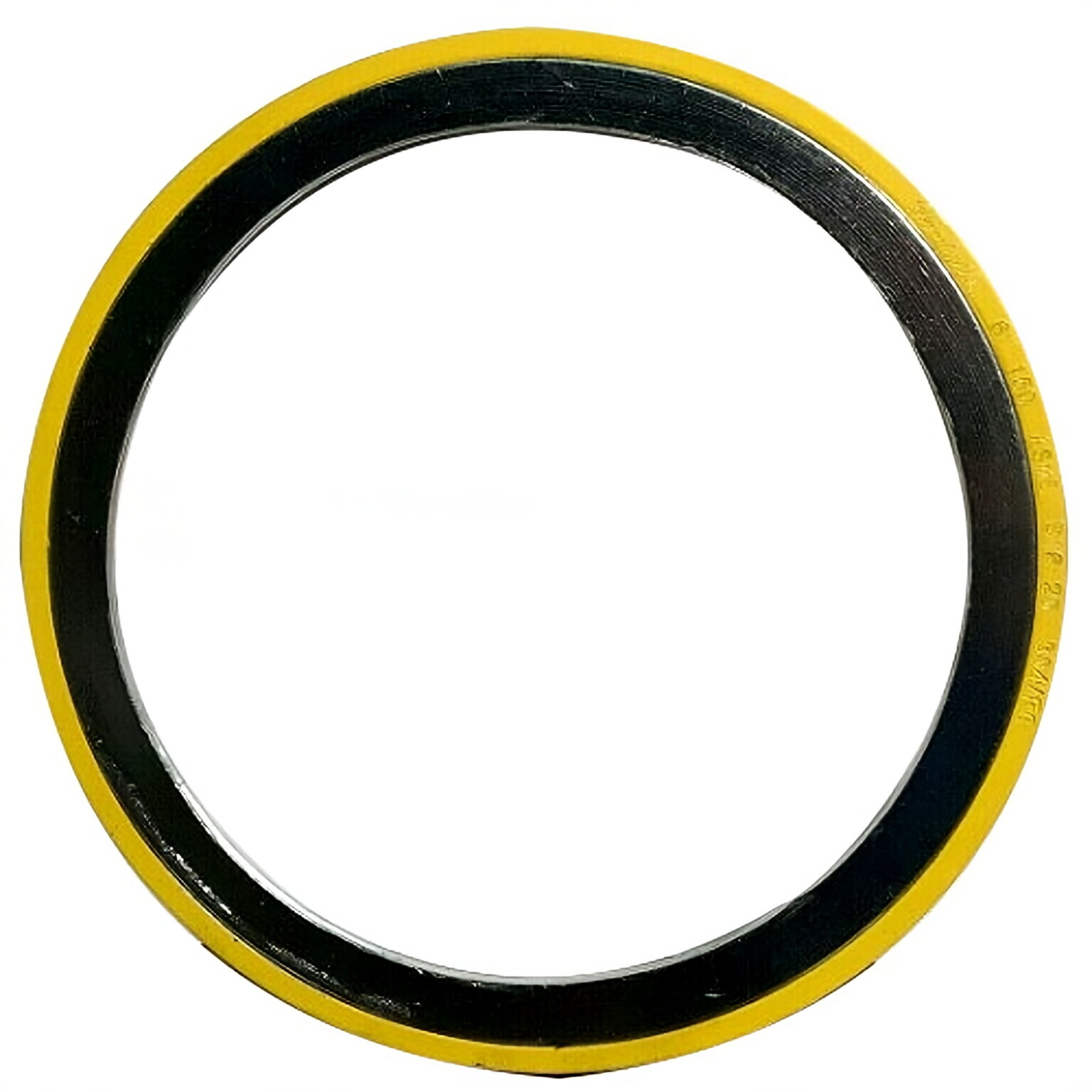

Style CG spiral wound gasket structure showing outer guide ring and V-shape metallic winding
Style CG structure: solid outer guide ring + V-shape metallic winding.

CG Structure — Outer Guide Ring Only, No Inner Ring

The Style CG construction consists of two functional parts. Each part has a specific role on the flange joint.

01

Outer Guide Ring

Solid metal ring, normally 3.2 mm (0.125") thick. Centers the gasket on the bolt circle, adds radial strength, prevents blowout and provides a compression stop. Standard material is carbon steel; stainless steel available on request.

02

V-Shape Winding + Filler

Alternating layers of V-shape metallic tape and soft filler form the sealing element. The winding compresses under bolt load and recovers through thermal cycling. The filler provides the sealing barrier against the process medium.

Design note: Style CG has no inner ring. The winding bore is exposed to the process medium. For Class 900 and above, or where the winding may buckle inward under bolt load, specify the CGI style with an inner ring instead.

Technical Specifications of Style CG Spiral Wound Gasket

Specification Value
Design standard ASME B16.20
Gasket thickness 4.5 mm (0.175") standard, unless otherwise specified
Outer guide ring thickness 3.2 mm (0.125") solid metal
Pressure class range Class 150 to Class 2500
Flange type Flat face and raised face
Inner ring None — CG style has outer guide ring only
Inner ring recommendation Class 900 and above: use CGI style with internal ring
Flange standards ASME B16.5, BS 1560, BS 10, ASME B16.47 Series A (MSS SP 44), ASME B16.47 Series B (API 605), BS 4504, DIN
Marking Manufacturer, flange standard, pressure class, size, material and batch code
Reusability Single-use — replace once wear, tear or leakage occurs

Winding Materials and Filler Options

Style CG spiral wound gaskets are available in a wide range of winding alloys and filler materials. The correct combination depends on the process medium, operating temperature, pressure class and flange material.

Winding Alloys

Winding Material Typical UNS Typical Service Notes
SS 304 S30400 General purpose, oxidizing acids, most common stainless winding
SS 304L S30403 Low-carbon variant, improved weldability
SS 316 S31600 Adds molybdenum, improved chloride and pitting resistance
SS 316L S31603 Low-carbon 316, common for chemical and petrochemical service
SS 316Ti S31635 Titanium-stabilized, high-temperature service
SS 310 S31000 High-temperature oxidation resistance
SS 321 S32100 Titanium-stabilized, high-temperature service
SS 347 S34700 Niobium-stabilized, resists polythionic acid SCC
SS 410 S41000 Martensitic, harder winding for abrasive service
Inconel 600 N06600 High-temperature and oxidizing service
Inconel 625 N06625 High strength, corrosion resistant
Monel 400 N04400 Seawater, hydrofluoric acid and alkaline service
Titanium R50400 Oxidizing, chloride and seawater service
Nickel N02200 Caustic and high-temperature halogen service
Incoloy 800 N08800 High-temperature oxidation and carburization resistance
Incoloy 825 N08825 Reducing and oxidizing acids, chloride service
Alloy 20 N08020 Sulfuric acid and chemical processing
Hastelloy B2 N10665 Hydrochloric acid and reducing media
Hastelloy C276 N10276 Wide chemical resistance, oxidizing and reducing

Filler Materials

Filler Typical Application
Flexible graphite High-temperature service, steam, hydrocarbons, general chemical
PTFE Chemical, acid, alkali, solvent and low-temperature service
Non-asbestos General industrial service, oil and gas, water and steam
Vermiculite High-temperature oxidizing service, refinery and petrochemical

Style CG vs Style CGI — Which One Should You Specify?

Both styles are spiral wound gaskets. The difference is the inner ring. Style CG has an outer guide ring only; Style CGI has both an inner ring and an outer ring.

Style CG

  • Outer guide ring only
  • No inner ring
  • Flat face and raised face flanges
  • Class 150 to Class 2500
  • Mild to moderate service conditions
  • Fewer components, lower cost

Style CGI

  • Inner ring + outer ring
  • Inner ring acts as compression stop
  • Prevents inward buckling of winding
  • Recommended for Class 900 and above
  • Preferred for corrosive or toxic media
  • Reduces turbulence in the bore
Selection rule: For Class 900 and above, an internal ring is recommended. If your flange is a flat face or raised face design at a lower pressure class, Style CG is normally sufficient. Send the pressure class and medium for a firm recommendation.

Standards and Flange Compatibility

Style CG spiral wound gaskets are manufactured in accordance with all relevant gasket standards to suit the following flange designations. If your flange standard is not listed, send the drawing — non-standard dimensions and custom sizes are quoted on request.

ASME B16.5 Steel pipe flanges and flanged fittings, NPS 1/2 to 24
ASME B16.47 Series A Large diameter flanges, MSS SP 44
ASME B16.47 Series B Large diameter flanges, API 605
BS 1560 Steel pipe flanges for the petroleum industry
BS 10 Flanges and bolting for pipes, valves and fittings
BS 4504 Circular flanges for pipes, valves and fittings
DIN DIN standard flanges, PN series

Gasket Marking and Stamping

Style CG spiral wound gaskets are marked to allow identification at the point of installation. The outer guide ring carries the marking. Where private-label or OEM marking is required, send the artwork and the required fields.

Marking Field Example
Manufacturer name or trademark Kaxite / customer brand on request
Flange standard ASME B16.5
Pressure class Class 150 / Class 300 / Class 600
Nominal size NPS 4 / DN 100
Winding material code 304 / 316L / 321 / 347
Filler material code G / PTFE / NA / V
Batch or traceability code Customer or factory assigned
Style CG spiral wound gasket outer ring marking and stamping example
Typical outer ring marking layout for Style CG spiral wound gaskets.

Applications of Style CG Spiral Wound Gaskets

Style CG spiral wound gaskets are used across process industries where the joint requires a self-centering gasket with an outer guide ring, and where the pressure class does not require the additional compression stop of an inner ring.

01

Flanged Joints

General process piping, valves, pumps and vessels on flat face and raised face flanges.

02

Heat Exchangers

Shell and tube heat exchangers, channel covers, floating heads and nozzle connections.

03

Boiler Handholes and Manholes

Boiler access openings where a self-centering gasket with a compression stop is required.

04

High-Temperature Service

Steam, hydrocarbon and process piping where the winding and filler are selected for the operating temperature.

05

Corrosive and Toxic Media

Chemical, petrochemical and refining service where the winding alloy and filler resist the process medium.

06

Oil, Gas and Power

Upstream, midstream, downstream and power generation flanged connections within the CG service envelope.

Style CG spiral wound gaskets installed on flanged joints for heat exchangers and process piping
Style CG gaskets on flanged joints, heat exchangers and process piping.

Five Items We Need to Quote a Style CG Spiral Wound Gasket

Send the following five items with your enquiry. If you already have a flange drawing or an existing gasket sample, attach it and we will match it directly. Our sales engineers reply with a firm unit price, lead time and available samples.

  1. 1

    Nominal Pipe Size or Gasket Dimensions

    NPS, DN or specific inner and outer diameters for non-standard joints.

  2. 2

    Pressure Rating and Flange Standard

    Class 150, 300, 600, 900, 1500, 2500 or PN10 to PN250, plus the flange standard such as ASME B16.5 or EN 1092.

  3. 3

    Winding Alloy and Filler

    SS 304, 316L, 321, 347, Monel, Inconel, Hastelloy or other alloy; graphite, PTFE, non-asbestos or vermiculite filler.

  4. 4

    Outer Ring Material and Marking

    Carbon steel painted as standard; SS 304 or SS 316 available. Specify private-label or OEM marking if required.

  5. 5

    Quantity and Destination Port

    Order quantity and destination port so we can quote FOB, CIF or freight-inclusive pricing. MOQ 10 pieces.

Commercial terms: MOQ 10 pieces. Lead time 7–30 days depending on size, alloy, filler and quantity. Payment terms, shipping method, warranty and return policy are confirmed in the quotation. Certifications: [待补充]. Send your specification for a firm quotation.

FAQ for Buyers Sourcing Style CG Spiral Wound Gaskets

What is a Style CG spiral wound gasket?
A Style CG spiral wound gasket consists of a V-shape metallic winding and a solid outer guide ring. There is no inner ring. The outer ring centers the gasket on the flange bolt circle, provides radial strength to prevent blowout and acts as a compression stop. Style CG is a general-purpose gasket suitable for flat face and raised face flanges up to and including ASME Class 2500.
What is the difference between Style CG and Style CGI?
Style CG has an outer guide ring only. Style CGI has both an inner ring and an outer ring. The inner ring acts as a compression stop, prevents inward buckling of the winding and reduces turbulence in the bore. Style CGI is preferred for Class 900 and above, and for corrosive or toxic media. Style CG is suitable for mild to moderate service conditions.
What is the standard thickness of a Style CG gasket?
Gaskets for standard flanges are 4.5 mm (0.175") thick, fitted with a 3.2 mm (0.125") thick solid metal outer ring, unless otherwise stated. Non-standard thicknesses are quoted on request.
Can Style CG spiral wound gaskets be used on flat face flanges?
Yes. Style CG spiral wound gaskets are suitable for use with both flat face and raised face flanges up to and including Class 2500. For Class 900 and above, an internal ring is recommended, in which case the CGI style is specified instead.
What winding and filler materials are available?
Winding materials include SS 304, 304L, 316, 316L, 316Ti, 310, 321, 347, 410, Inconel 600, Inconel 625, Monel 400, Titanium, Nickel, Incoloy 800, Incoloy 825, Alloy 20, Hastelloy B2 and Hastelloy C276. Filler materials include flexible graphite, PTFE, non-asbestos and vermiculite.
Can Style CG spiral wound gaskets be reused?
No. Style CG spiral wound gaskets should be treated as single-use gaskets and replaced once wear, tear or leakage occurs. Reuse is not recommended because the winding and filler deform permanently under bolt load.
What is the MOQ and lead time for a Style CG spiral wound gasket order?
MOQ is 10 pieces. Typical lead time is 7–30 days depending on size, winding alloy, filler and order quantity. Custom sizes, OEM marking and private-label packaging are available. Send your flange specification for a firm quotation and confirmed delivery date.

Request a Bulk Quotation for Style CG Spiral Wound Gaskets

Send your flange standard, nominal pipe size, pressure class, winding alloy, filler, outer ring material and quantity. Our sales engineers reply with a firm unit price, lead time and available samples. For urgent requirements, contact us by phone or WhatsApp.

Send Inquiry
