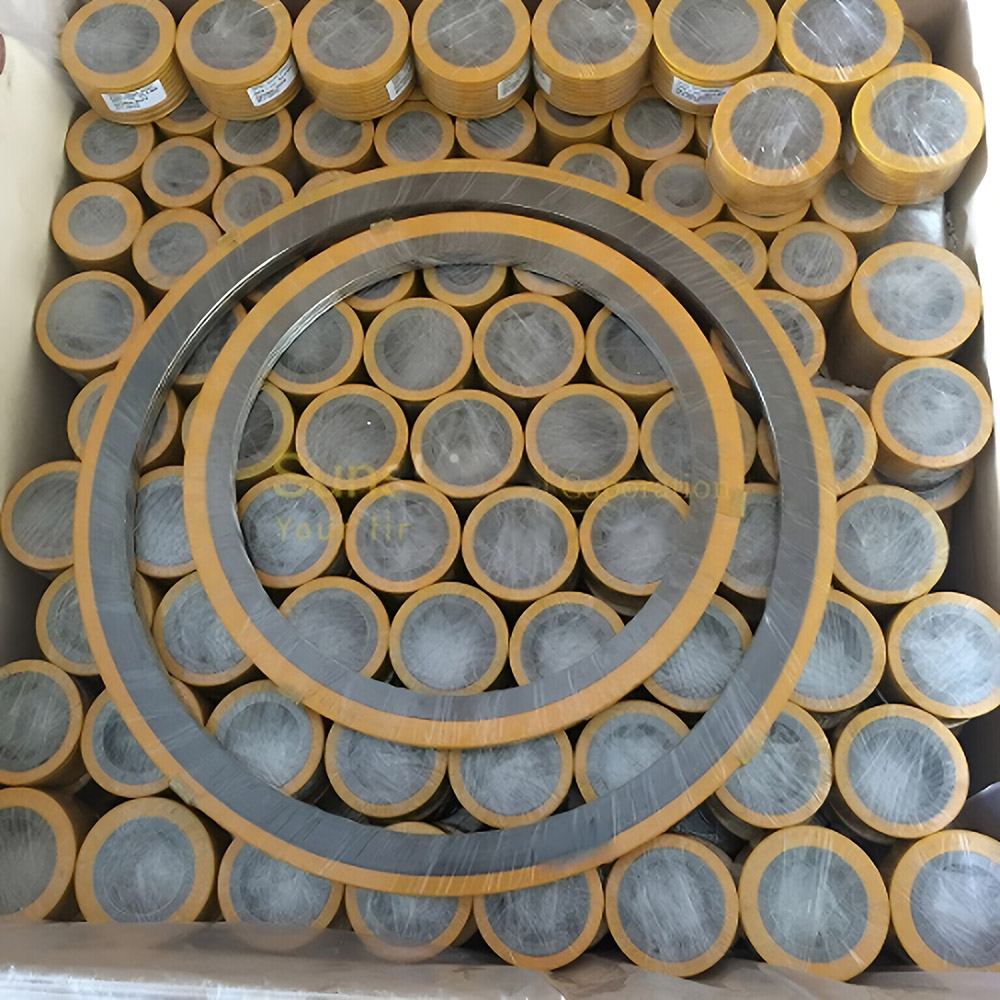

SS 316Ti Spiral Wound Gasket

Elevate your sealing solutions with Kaxite Sealing's SS 316Ti Spiral Wound Gasket, engineered for high-temperature and corrosive environments. Its superior 316Ti stainless steel construction ensures exceptional durability and leak-free performance, making it ideal for industrial applications like chemical processing and power generation. Experience unmatched reliability and peace of mind, with enhanced corrosion resistance that sets it apart from standard gaskets. Trust Kaxite Sealing for precision sealing that safeguards your operations.

Send Inquiry

Product Description

What is SS 316Ti Spiral Wound Gasket?

SS 316Ti spiral wound gasket consists of a winding ring made of V-shape SS 316Ti strip and PTFE or graphite filler, then combined with an inner ring or outer centering guide ring. SS 316Ti spiral wound gasket has excellent resistance to general corrosion and pitting corrosion, which is better than the conventional chromium-nickel austenitic stainless steel spiral wound gasket such as Type 304. SS 316Ti spiral wound gasket also offer higher creep, stress-rupture and tensile strength at elevated temperature

What is SS 316Ti?

Grade SS 316Ti is similar to Grade 316L except that 316Ti has better high temperature strength, and mechanical strength. It is used for equipment exposed to aggressive corrosive conditions and high temperature applications including automotive flexible connectors, welded bellows, chimney liners, and flexible ducting.

Applications of SS 316Ti Spiral Wound Gasket

SS 316Ti spiral wound gasket is used in marine environment, Pulp and Paper Equipment, Heat exchangers, Propeller shafts, Fittings, Exterior Architectural components in Marine Coastal Areas.

Chemical Analysis of SS 316Ti (%)

Ni	P ≤	Ni	C ≤	Ti ≤	Cr ≤	Mn ≤	Si ≤
Balance	0.45	10 - 14	0.08	0.7	16 - 18	2	0.75

Mechanical Properties of SS 316Ti

Ultimate Tensile Strength (Mpa)	Elongation %	Yield Strength MPa	Density g/cm3
550	43	240	9.2

SS 316Ti Spiral Wound Gasket

Hot Tags: SS 316Ti Spiral Wound Gasket, High Pressure Spiral Wound Gasket, Spiral Wound Gasket Stainless Steel
