SS 304 CG Spiral Wound Gasket

SS 304 CG Spiral Wound Gasket

Kaxite Sealing is a China-based SS 304 CG spiral wound gasket manufacturer, producing gaskets from SS 304 stainless steel winding with an outer guide ring only — the CG configuration per ASME B16.20. SS 304 is the most common form of stainless steel used around the world due to its excellent corrosion resistance and value. It can withstand corrosion from most oxidizing acids, and its durability makes it easy to sanitize — ideal for kitchen, food and general industrial applications. The basic steel alloy composition is 18% chromium and 8% nickel, with carbon, manganese, silicon, phosphorus and sulfur making up the balance. This gives SS 304 a well-balanced combination of weldability, corrosion resistance and oxidation resistance. Chemical composition: UNS S30400, Cr 18–20%, Ni 8–10.5%, C ≤0.08%, Mn ≤2%, Si ≤0.75%, P ≤0.045%, S ≤0.03%. Mechanical properties: tensile 550 MPa, yield 230 MPa, elongation 51%, density 7.93 g/cm³, hardness 85 HRB. The CG style carries an outer guide ring but no inner ring, and is suitable for male and female pipe flanges. Very suitable for flat bottom groove flanges, natural gas and power generation, hydrocarbon processing and refining, petrochemical processing, chemical processing, and oil and gas industries. Custom sizes, OEM private-label packaging and flexible MOQ are available for B2B buyers. Send your flange standard, nominal pipe size, pressure rating and quantity for a bulk quotation.
UNS S30400Material Grade CG StyleOuter Ring Only 18% Cr · 8% NiBase Composition ASME B16.20Design Standard

SS 304 CG Spiral Wound Gasket Manufacturer — The World's Most Common Stainless Steel Winding in the CG Configuration for Oxidizing Acid, Natural Gas and Petrochemical Service

Kaxite Sealing manufactures SS 304 CG spiral wound gaskets from SS 304 stainless steel winding with an outer guide ring only. SS 304 is the most common form of stainless steel used around the world due to its excellent corrosion resistance and value. It can withstand corrosion from most oxidizing acids, and its durability makes it easy to sanitize — ideal for kitchen and food applications as well as general industrial service.

The basic steel alloy is comprised of 18% chromium and 8% nickel, with carbon, manganese, silicon and small quantities of phosphorus and sulfur making up the rest. That makeup ensures SS 304 includes a well-balanced amount of performance in terms of weldability, corrosion resistance and oxidation resistance. This is the grade to specify when you want the world's most proven stainless steel at the lowest material cost that still meets the service requirement.

The CG configuration carries an outer guide ring but no inner ring, and is suitable for male and female pipe flanges and flat bottom groove flanges. Very suitable for natural gas and power generation, hydrocarbon processing and refining, petrochemical processing, chemical processing, and oil and gas industries. Custom sizes, OEM private-label packaging and flexible MOQ are available for B2B buyers.

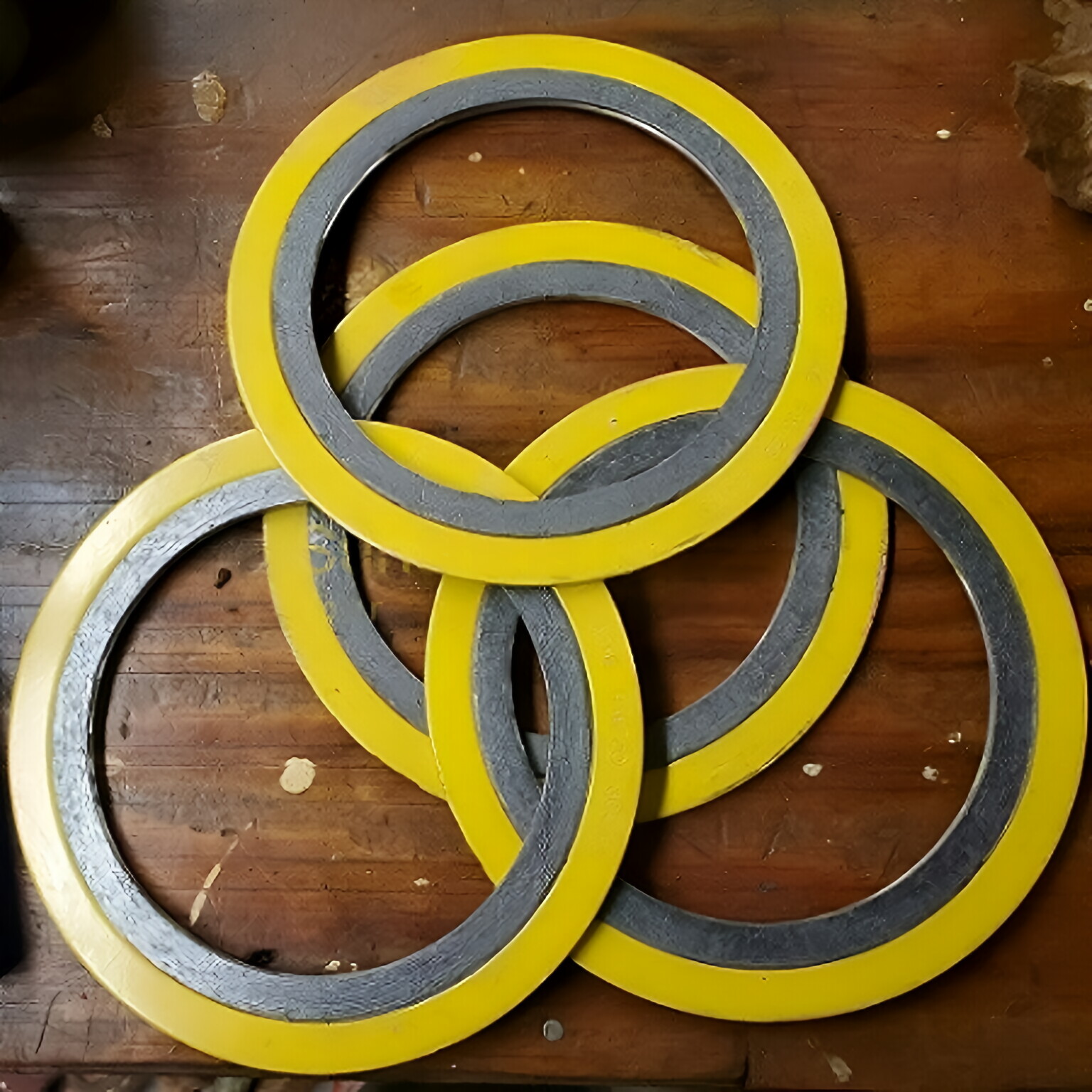

SS 304 CG Spiral Wound Gasket with outer guide ring only and SS 304 stainless steel winding, supplied by Kaxite Sealing
Material Snapshot

SS 304 Material at a Glance

Chromium 18–20% Passive layer former
Nickel 8–10.5% Austenite stabiliser
Carbon ≤ 0.08% Standard grade
Tensile Strength 550MPa Ultimate
Yield Strength 230MPa 0.2% offset
Hardness 85HRB Rockwell B
Chemistry

Chemical Analysis of SS 304 — UNS S30400

Eight elements define the SS 304 grade. Chromium and nickel are the two that give SS 304 its corrosion resistance — the 18% chromium forms the passive oxide layer and the 8% nickel stabilises the austenitic structure. The remaining elements are either residuals or added for specific processing reasons. Each value is shown as a horizontal gauge below, with the chemical symbol on the left and the value or range on the right.

Cr Chromium
18–20% Passive layer
Ni Nickel
8–10.5% Austenite stabiliser
Mn Manganese
≤ 2% Max
Si Silicon
≤ 0.75% Max
C Carbon
≤ 0.08% Max
P Phosphorus
≤ 0.045% Max
S Sulfur
≤ 0.03% Max

The base composition of 18% Cr and 8% Ni is what gives SS 304 its excellent all-round corrosion resistance. SS 304 can withstand corrosion from most oxidizing acids, and its durability makes it easy to sanitize — ideal for kitchen and food applications as well as petrochemical, chemical and oil & gas service.

Mechanical Properties

SS 304 Mechanical Performance

The values below are measured on the annealed condition used for spiral wound gasket winding tape. SS 304 delivers a very high elongation (51%) that lets the winding deform into the flange serrations without cracking under bolt load — the property that matters most for a spiral wound gasket.

550MPa Tensile strength
230MPa Yield strength
51% Elongation
7.93g/cm³ Density
85HRB Hardness
CG Structure

What Is the CG Type of Spiral Wound Gasket?

CG is the ASME B16.20 designation for a spiral wound gasket with an outer guide ring but no inner ring. The outer ring is what makes the CG gasket self-centering on the flange bolt circle, and it also protects the winding during handling and installation. The CG is the most economical configuration — it uses less material than the CGI variant and is faster to produce, which is why it is the standard choice for moderate-pressure service.

Outer Guide Ring
Winding + Filler
Bore

Outer Guide Ring — centres the gasket on the flange bolt circle and protects the winding. Standard material is carbon steel painted. Available in stainless steel (SS 304 or SS 316) for corrosive environments.

Winding + Filler — the sealing element. SS 304 stainless steel V-shape tape alternates with a soft filler (graphite, PTFE or non-asbestos) to form a resilient sealing ring that compresses under bolt load and recovers through thermal cycling.

Bore — the through-hole. Because the CG has no inner ring, this dimension is set by the winding itself, which is why CG is only recommended when the flange has its own compression stop or the service pressure is moderate.

Flange compatibility — suitable for male and female pipe flanges, and flat bottom groove flanges. For high-pressure or IBC flanges where the winding could buckle inward under bolt load, choose the CGI variant with an inner ring instead.

SS 304 CG Spiral Wound Gasket structure showing outer guide ring, winding and bore — no inner ring
Cost Comparison

Which Is Cheaper — SS 304 or SS 316?

The 304 stainless steel (also known as SS 304) is usually cheaper than 316 stainless steel. That price difference comes from two specific alloying elements that the 304 grade simply does not need. Understanding where the money goes helps you decide whether SS 304 is enough for a given joint — or whether the extra cost of 316 is worth it.

SS 304 Base Price
  • 18–20% Cr, 8–10.5% Ni
  • No molybdenum
  • Withstands most oxidizing acids
  • Excellent value for moderate service

The economical choice

SS 316 About +40%
  • 16–18% Cr, 10–14% Ni
  • Adds 2–3% Mo
  • Higher pitting & chloride crevice resistance
  • Worth it when chlorides are present

The corrosion upgrade

The engineering question is not "which is better?" — both grades have a place. The right question is "will SS 304 survive my service?" If the answer is yes, SS 304 gives you the same gasket performance at 40% lower material cost. If chlorides or strong reducing acids are present at temperature, SS 316 is worth the premium. Send us the medium and temperature and we will recommend the grade that fits your joint.

Applications

Where SS 304 CG Spiral Wound Gaskets Are Used

SS 304 CG spiral wound gaskets have very good corrosion resistance, heat resistance and treatment. They are the standard choice across a wide range of industrial applications where the medium is non-chloride, non-reducing or mildly oxidizing, and where the pressure class does not require the additional compression stop of a CGI inner ring.

01

Flat Bottom Groove Flanges

The classic CG application — the outer ring centres the winding in the groove and protects it during installation.

02

Natural Gas & Power Generation

Flanged joints on gas transmission, turbine inlet and steam cycle piping where SS 304 corrosion resistance is sufficient.

03

Hydrocarbon Processing & Refining

Process piping where the medium is dry or mildly oxidizing and temperatures are within the 304 service envelope.

04

Petrochemical Processing

Flanged equipment where SS 304 provides adequate corrosion resistance at the lowest material cost.

05

Chemical Processing

Oxidizing acid service where SS 304 outperforms carbon steel and lower alloys.

06

Oil & Gas Industries

General upstream and midstream flanged joints where the medium does not require molybdenum-bearing corrosion resistance.

How to Order

Five Items We Need to Quote an SS 304 CG Spiral Wound Gasket

To return a firm unit price, lead time and available samples, send the following five items with your enquiry. If you already have a flange drawing or a sample of the existing gasket, attach that instead — we will match it directly.

1

Nominal Pipe Size

Or specific gasket inner / outer diameters if the joint is non-standard.

2

Pressure Rating

Class 150, 300, 600, 900, 1500, 2500 or PN10 to PN250.

3

Filler Material

Graphite, PTFE or non-asbestos. SS 304 is usually paired with graphite for high-temperature service.

4

Outer Ring Material

Carbon steel painted as standard. Specify SS 304 or SS 316 if the flange environment is corrosive.

5

Quantity & Port

Order quantity and destination port so we can quote freight-inclusive or FOB.

If you are not sure whether SS 304 or SS 316 is the right grade for your medium, send the chemical name, chloride concentration and operating temperature and we will recommend the correct winding material. Custom sizes, non-standard dimensions and private-label packaging are all available.

FAQ

Frequently Asked Questions from Purchasing Teams

What is the CG type of spiral wound gasket?
A CG spiral wound gasket consists of a winding ring and an outer ring — there is no inner ring. By means of suitable dimension of the centering ring, the sealing element is accurately centered on the flange face by the bolts. The outer ring of the spiral wound gasket protects the spiral wound sealing element. CG gaskets are suitable for male and female pipe flanges, and for flat bottom groove flanges. The CGI variant adds an inner ring for additional compression-stop protection — choose CGI for high-pressure service or where the winding might buckle inward under bolt load.
Which is cheaper, SS 304 or SS 316?
The 304 stainless steel (also known as SS 304) is usually cheaper than 316 stainless steel. SS 304 contains up to 18% chromium and up to 8% nickel. It is a strong metal with high resistance against corrosion that can be easily fabricated. SS 316 adds molybdenum, which is more expensive, so on average 316 stainless steel costs about 40% more than 304. Choose SS 304 when the service medium does not require molybdenum-bearing corrosion resistance.
What is the chemical composition of SS 304?
UNS S30400 chemical composition: Cr 18–20%, Ni 8–10.5%, C ≤0.08%, Mn ≤2%, Si ≤0.75%, P ≤0.045%, S ≤0.03%. The 18% chromium and 8% nickel content is what gives SS 304 its excellent all-round corrosion resistance and makes it the most common stainless steel in the world.
What are the mechanical properties of SS 304?
SS 304 mechanical properties: ultimate tensile strength 550 MPa, yield strength 230 MPa, elongation 51%, density 7.93 g/cm³, hardness 85 HRB. The 51% elongation is what makes the winding deform into flange serrations without cracking under bolt load.
Where is SS 304 CG spiral wound gasket used?
SS 304 CG spiral wound gaskets have very good corrosion resistance, heat resistance and treatment. They are very suitable for flat bottom groove flanges, natural gas and power generation, hydrocarbon processing and refining, petrochemical processing, chemical processing, and oil and gas industries. SS 304 can withstand corrosion from most oxidizing acids, and its durability makes it easy to sanitise for kitchen and food applications.
What information do you need to quote an SS 304 CG spiral wound gasket?
Five items: (1) nominal pipe size or specific gasket dimensions, (2) pressure rating (Class or PN), (3) filler material (graphite, PTFE or non-asbestos), (4) outer ring material (carbon steel painted as standard, or stainless steel on request), (5) quantity and destination port. With these five items we can return a firm unit price, lead time and available samples.

Need pricing on SS 304 CG spiral wound gaskets?

Send your flange standard, nominal pipe size, pressure rating, filler material and quantity. Our sales engineers reply with a quotation, available samples and the packing options for your market.
