Vermiculite Filler 835 Spiral Wound Gasket

Vermiculite Filler 835 Spiral Wound Gasket

Kaxite Sealing is a China-based Vermiculite Filler 835 spiral wound gasket manufacturer, producing a critical service gasket designed for applications involving high temperatures or aggressive chemical media. The gasket is built from a spirally wound sealing element composed of a metal winding wire — SS304, SS316L, SS321 or Monel 400 — combined with a vermiculite based filler material. It can be supplied with inner and outer centering compression stop rings, or in sealing element form only. The spiral construction provides excellent sealing performance and delivers high levels of gasket resilience. Working range: fluid pressures up to 250 bar, temperatures from −240 °C to +1000 °C. The vermiculite filler is suitable for a wide range of operating conditions and can be adapted to suit almost all applications, including those where graphite filler would oxidise or where PTFE filler would not survive the temperature. Custom sizes, OEM private-label packaging and flexible MOQ are available for B2B buyers. Send your flange standard, nominal pipe size, pressure rating, winding material and quantity for a bulk quotation.
VF-835 Critical Service · Spiral Wound · Vermiculite Filled

Vermiculite Filler 835 Spiral Wound Gasket Manufacturer — Critical Service Sealing for High Temperature and Aggressive Chemical Media up to 1000 °C and 250 bar

Kaxite Sealing manufactures the Vermiculite Filler 835 spiral wound gasket as a critical service gasket, designed for use in applications involving high temperatures or aggressive chemical media. The gasket is comprised of a spirally wound sealing element, composed of a metal winding wire in combination with a vermiculite based filler material.

The spiral construction provides excellent sealing performance and confers high levels of gasket resilience — the winding flexes with the flange under bolt load and thermal cycling, so the seal stays loaded even when the joint moves. This is the difference between a gasket that leaks after the first heat-up and one that holds through years of service.

The gasket can be supplied with inner and outer centering compression stop rings, or in sealing element form only for flanges with their own retaining grooves. It seals fluid pressures up to 250 bar and covers a temperature range from −240 °C to +1000 °C, making it suitable for a wide range of operating conditions and adaptable to suit almost all applications. Custom sizes, OEM private-label packaging and flexible MOQ are available for B2B buyers.

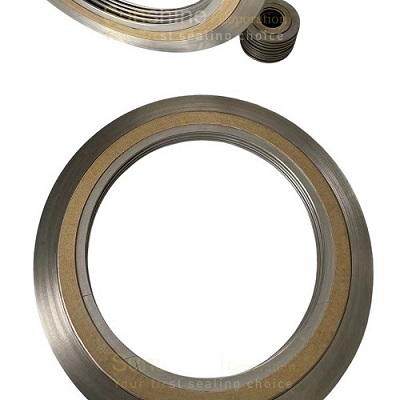

Vermiculite Filler 835 Spiral Wound Gasket for critical high-temperature and aggressive chemical media service, supplied by Kaxite Sealing
Filler Vermiculite
Winding SS304 / SS316L / SS321 / Monel 400
Temperature −240 to +1000 °C
Pressure Up to 250 bar
Structure 3-part (winding + inner + outer)
Service Critical
01
Overview

What Is a Vermiculite Filler 835 Spiral Wound Gasket?

A Vermiculite Filler 835 spiral wound gasket is a critical service gasket. It is designed specifically for applications involving high temperatures or aggressive chemical media — the two conditions that push standard gasket fillers past their limits.

Most spiral wound gaskets use graphite or PTFE as the filler. Graphite oxidises above 650 °C in air, and PTFE softens and extrudes above about 260 °C. Vermiculite does neither. It is a naturally occurring mineral with a layered structure that expands under heat, and that expansion is exactly what gives the gasket its high-temperature sealing performance. That is why the 835 grade is specified when neither graphite nor PTFE will survive the service.

The gasket is constructed as a spirally wound sealing element — a metal winding wire combined with the vermiculite based filler material. The winding and filler alternate in a spiral that forms a resilient sealing ring, which is then optionally enclosed by an inner ring and an outer guide ring.

02
Construction

Three-Part Construction — Winding Ring, Inner Ring and Outer Ring

The gasket has three main parts. Each has a specific job, and each can be specified independently based on the service duty. The gasket can also be supplied in sealing element form only, without the inner and outer rings, for flanges with their own retaining grooves.

1 · Winding Ring

The sealing element. A spirally wound metal wire alternates with the vermiculite filler to form the compressible ring that contacts the flange faces and forms the primary seal.

2 · Inner Ring

A solid metal ring on the inside of the winding. It provides an additional compression stop and prevents the winding from buckling inward under high bolt load. Material is usually the same as the winding ring.

3 · Outer Guide Ring

Centres the gasket on the flange bolt circle and limits compression. Mostly carbon steel painted, but also available in stainless steel such as SS304 or SS316 for corrosive environments.

03
Materials

Material Options for Each Component

Each of the three parts can be specified independently. Choose the winding material for corrosion resistance and temperature, the inner ring to match the winding, and the outer ring for the flange environment.

Winding Ring

  • SS304
  • SS316L
  • SS321
  • Monel 400

Combined with vermiculite filler.

Inner Ring

  • Same as winding ring
  • Or an alternative alloy to match the service medium

Recommended to match the winding for most applications.

Outer Guide Ring

  • Carbon steel painted (standard)
  • SS304
  • SS316

Choose stainless for offshore, marine or highly corrosive environments.

04
Operating Range

Temperature and Pressure — Full Critical Service Range

The gasket is suitable for a wide range of operating conditions and can be adapted to suit almost all applications. The numbers below are the design envelope, not the limits of a single specification — send the medium, temperature and pressure and we will confirm which winding and ring combination is correct for your joint.

Pressure 250bar

Maximum fluid pressure the gasket seals in standard configuration.

Minimum temperature −240°C

Covers cryogenic service including LNG, LPG and cold-box applications.

Maximum temperature +1000°C

The key advantage over graphite filler, which oxidises above 650 °C in air. Vermiculite does not oxidise at this temperature.

05
How to Order

Five Items We Need to Quote a Vermiculite Filler 835 Gasket

To return a firm unit price, lead time and available samples, send the following five items with your enquiry. If you already have a flange drawing or a sample of the existing gasket, attach that instead — we will match it directly.

1

Nominal Pipe Size

Or specific gasket inner / outer diameters if the joint is non-standard.

2

Pressure Rating

Class 150, 300, 600, 900, 1500, 2500 or PN10 to PN250.

3

Winding Material

SS304, SS316L, SS321 or Monel 400. Choose based on the medium and temperature.

4

Ring Configuration

With inner and outer rings, or sealing element only. Specify the outer ring material if stainless is required.

5

Quantity & Port

Order quantity and destination port so we can quote freight-inclusive or FOB.

If you are not sure which winding material suits your medium, send the chemical name, concentration and operating temperature and we will recommend the correct combination. Custom sizes, non-standard dimensions and private-label packaging are all available.

FAQ

Frequently Asked Questions from Purchasing Teams

What is a Vermiculite Filler 835 spiral wound gasket used for?
The Vermiculite Filler 835 spiral wound gasket is a critical service gasket designed for use in applications involving high temperatures or aggressive chemical media. It is used wherever a graphite-filled gasket would oxidise above 650 °C in air, or where a PTFE-filled gasket would not survive the operating temperature. Typical applications are refinery process piping, petrochemical reactors, power plant steam lines and chemical plant equipment.
What is the temperature and pressure range of the Vermiculite Filler 835 gasket?
The gasket seals fluid pressures up to 250 bar and covers a temperature range from −240 °C to +1000 °C. This wide range is what makes it suitable for critical service — the vermiculite filler retains sealing performance across the full span without the oxidation or embrittlement issues that other filler materials show at the extremes.
What materials are available for the winding ring, inner ring and outer ring?
Winding ring: SS304, SS316L, SS321 or Monel 400, mixed with the vermiculite filler. Inner ring: usually the same as the winding ring material. Outer guide or centering ring: mostly carbon steel painted, or stainless steel such as SS304 or SS316. Custom combinations are produced on request.
How is a Vermiculite Filler 835 spiral wound gasket constructed?
The gasket has three main parts: a winding ring, an inner ring, and an outer guide ring. The winding ring is the sealing element — a spirally wound metal wire combined with the vermiculite filler. The inner ring provides an additional compression stop and prevents inward buckling. The outer guide ring centres the gasket on the flange and limits compression. It can also be supplied in sealing element form only, without the inner and outer rings, for flanges that have their own retaining grooves.
Can the Vermiculite Filler 835 gasket replace a graphite-filled spiral wound gasket?
Yes. Because the vermiculite filler resists oxidation at high temperature, it is the recommended replacement for a graphite-filled spiral wound gasket in oxidizing service above 650 °C. The bolt pattern and gasket dimensions are matched to the original standard, so the swap can be made without changing the flange or the bolt load procedure.
What information do you need to quote a Vermiculite Filler 835 spiral wound gasket?
Five items: (1) nominal pipe size or specific gasket dimensions, (2) pressure rating (Class or PN), (3) winding material (SS304, SS316L, SS321 or Monel 400), (4) inner and outer ring material, (5) quantity and destination port. With these five items we can return a firm unit price, lead time and available samples.

Need pricing on Vermiculite Filler 835 spiral wound gaskets?

Send your nominal pipe size, pressure rating, winding material and quantity. Our sales engineers reply with a quotation, available samples and the packing options for your market.
