SS 347 vermiculite spiral wound gasket from Kaxite Sealing is manufactured with UNS S34700 stabilized stainless steel winding and vermiculite filler for 427–816°C service. The niobium-stabilized 347 grade resists intergranular corrosion and polythionic acid stress corrosion cracking in refinery, petrochemical and high-temperature oxidizing service. Available in ASME B16.20 CG, CGI and flange-facing constructions, with carbon steel or stainless steel outer/inner rings. Custom sizes, OEM private-label packaging and bulk quotations for B2B buyers. Send NPS, pressure class, filler, ring material, quantity and destination port for a firm quote.
SS 347 / UNS S34700 · Vermiculite Filler · ASME B16.20
SS 347 Vermiculite Spiral Wound Gasket Manufacturer for High-Temperature, Oxidizing and Polythionic Acid Service
Kaxite Sealing is a China-based SS 347 vermiculite spiral wound gasket manufacturer and supplier. This gasket combines SS 347 / UNS S34700 stabilized stainless steel winding with vermiculite filler for reliable sealing in the 427–816°C range. The niobium-stabilized 347 grade resists intergranular corrosion and polythionic acid stress corrosion cracking, making it a preferred choice for refinery, petrochemical, chemical and power generation flange joints.
We produce ASME B16.20 CG, CGI and flange-facing constructions, with carbon steel or stainless steel inner and outer rings. Custom sizes, OEM private-label packaging, bulk quotations and fast delivery are available for B2B buyers. Send your flange specification today for a firm quotation.
Ring OptionsCS / SS 304 / SS 316Outer and inner rings
QuotationBulk / OEMSend flange spec
What Is an SS 347 Vermiculite Spiral Wound Gasket?
An SS 347 vermiculite spiral wound gasket is a semi-metallic sealing product made from SS 347 V-shape stainless steel strip and vermiculite filler. The SS 347 winding provides mechanical strength, spring-back and corrosion resistance, while the vermiculite filler delivers thermal stability in high-temperature service. This combination is especially suitable for flanged joints operating in the 427–816°C range.
SS 347 is a niobium-stabilized austenitic stainless steel. The addition of niobium plus tantalum prevents chromium carbide precipitation at grain boundaries during elevated-temperature exposure. That is why SS 347 is specified where unstabilized grades such as SS 304 may be subject to intergranular attack. Compared with SS 321, SS 347 generally offers better overall corrosion resistance in this temperature range and performs somewhat better in strongly oxidizing environments up to 816°C.

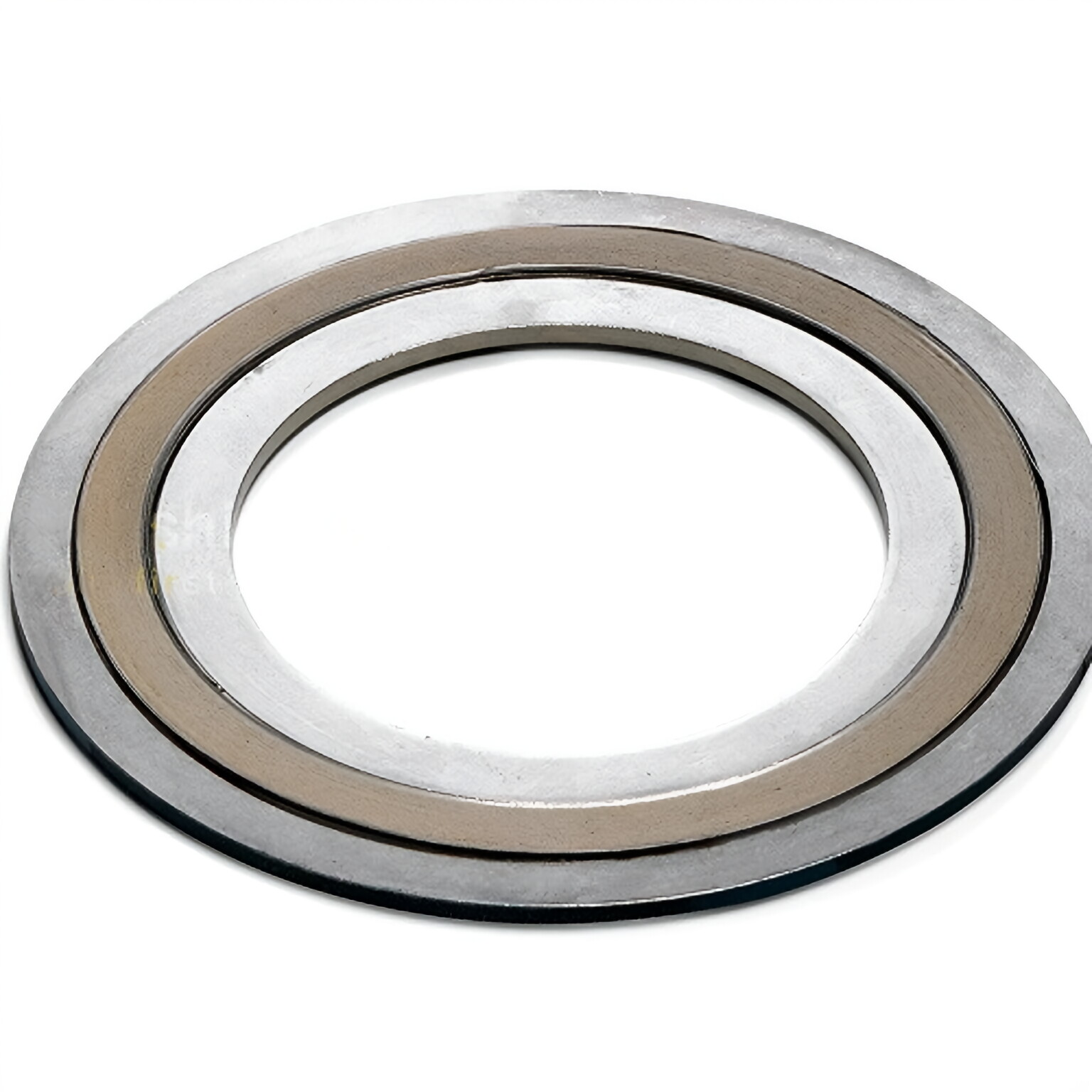

SS 347 vermiculite spiral wound gasket supplied by Kaxite Sealing.
Why Buy SS 347 Vermiculite Spiral Wound Gaskets from Kaxite Sealing?
Manufactured with SS 347 / UNS S34700 stabilized stainless steel winding.
Vermiculite filler for high-temperature sealing performance.
ASME B16.20 CG, CGI and flange-facing constructions.
Carbon steel, SS 304 or SS 316 inner and outer rings.
Custom sizes, OEM private-label packaging and bulk quotations.
Fast delivery and export packing for worldwide B2B buyers.
Chemical Composition of SS 347 Winding Material
SS 347 / UNS S34700 is a stabilized austenitic stainless steel. The niobium plus tantalum addition is the key difference from unstabilized grades such as SS 304. The values below are typical for spiral wound gasket winding tape.
Element
P
Cr
Ni
C
Mn
Si
Nb+Ta
Typical value
≤0.045%
17.0–19.0%
9.0–13.0%
≤0.08%
≤2.00%
≤0.75%
10×C–1.10%
The 17–19% chromium content forms the passive oxide layer. Nickel stabilizes the austenitic structure. Niobium plus tantalum stabilizes carbon and helps prevent intergranular corrosion during high-temperature service.
Typical Mechanical and High-Temperature Properties
The following values are typical for annealed SS 347 material used in spiral wound gasket winding. The vermiculite filler is selected for elevated-temperature flange joints where thermal stability and sealing resilience are required.
Property
Typical Value
UNS number
S34700
Tensile strength
≥515 MPa
Yield strength, 0.2% offset
≥205 MPa
Elongation
≥40%
Hardness
≤92 HRB
Density
8.0 g/cm³
Service temperature with vermiculite filler
427–816°C
Design standard
ASME B16.20

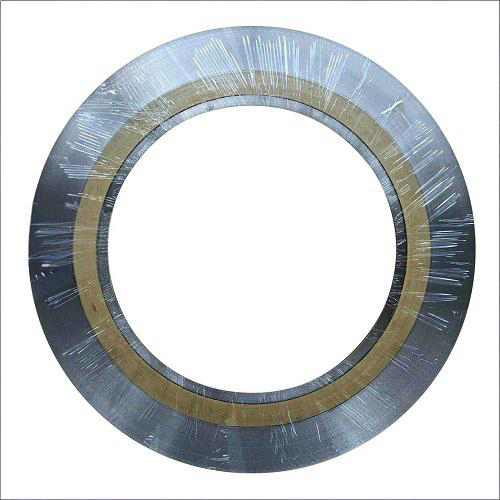

High-temperature SS 347 vermiculite spiral wound gasket construction.
SS 347 vs SS 321: Which Stabilized Stainless Steel Should You Specify?
Both SS 347 and SS 321 are stabilized grades used in high-temperature service. The choice depends on the operating medium, temperature and risk of polythionic acid stress corrosion cracking.
Comparison Item
SS 347
SS 321
Stabilizing element
Niobium + tantalum
Titanium
High-temperature range
427–816°C
427–816°C
General corrosion resistance
Comparable to 304; generally better than 321 in this range
Good, but generally lower than 347 in strongly oxidizing environments
Polythionic acid SCC
Resists in hydrocarbon service
Less preferred
Typical gasket service
Refinery, petrochemical, high-temperature oxidizing service
General high-temperature service
If your flange joint is in a refinery or petrochemical unit exposed to polythionic acid, SS 347 vermiculite spiral wound gaskets are usually the safer specification. Send us the medium, temperature and flange standard and we will confirm the correct winding and filler.
Where SS 347 Vermiculite Spiral Wound Gaskets Are Used
SS 347 vermiculite spiral wound gaskets are used in high-temperature and oxidizing service where standard SS 304 or SS 316 gaskets may not provide enough resistance to intergranular attack or polythionic acid stress corrosion cracking.
01
Chemical Processing
Flanged joints in nitric solutions, diluted organic acids and pure phosphoric acid at lower temperatures.
02
Petroleum Refining
Polythionic acid service in hydrocracking, hydrotreating and other refinery units.
03
Petrochemical Processing
High-temperature piping and equipment where stabilized stainless steel winding is required.
04
Food Processing Equipment
Processing and storage equipment requiring clean, durable and high-temperature sealing.
05
Pharmaceutical Production
High-purity and high-temperature flanged connections in pharmaceutical plants.
06
Power Generation
Steam, turbine and high-temperature auxiliary piping where reliable sealing is critical.
How to Order SS 347 Vermiculite Spiral Wound Gaskets
To receive a firm quotation, lead time and available samples, send the following information with your inquiry. If you already have a flange drawing or an existing gasket sample, attach it and we will match it directly.
1
Nominal Pipe Size or Gasket Dimensions
NPS, DN or specific inner and outer diameters for non-standard joints.
2
Pressure Rating
Class 150, 300, 600, 900, 1500, 2500 or PN10 to PN250.
3
Filler Material
Vermiculite as standard for high-temperature service; graphite or PTFE can be quoted on request.
4
Inner and Outer Ring Material
Carbon steel painted as standard; SS 304 or SS 316 available for corrosive environments.
5
Quantity and Destination Port
Order quantity and destination port so we can quote FOB, CIF or freight-inclusive pricing.
Custom sizes, OEM private-label packaging and bulk production are available. If you are not sure whether SS 347 or SS 321 is the right grade, send the chemical medium, chloride concentration and operating temperature and our sales engineers will recommend the correct winding material.
FAQ for Purchasing Teams
What is an SS 347 vermiculite spiral wound gasket?
An SS 347 vermiculite spiral wound gasket is made from SS 347 / UNS S34700 V-shape stainless steel winding and vermiculite filler. SS 347 is a niobium-stabilized austenitic stainless steel developed for high-temperature service where unstabilized grades such as 304 may suffer intergranular attack. Vermiculite filler provides reliable sealing at elevated temperatures.
What temperature range does an SS 347 vermiculite spiral wound gasket cover?
SS 347 vermiculite spiral wound gaskets are typically used in the temperature range of 427–816°C. This is the chromium carbide precipitation range where unstabilized stainless steels can be susceptible to intergranular corrosion. SS 347 is stabilized with niobium plus tantalum to resist this attack.
Why choose SS 347 instead of SS 321 for high-temperature gaskets?
Both SS 347 and SS 321 are stabilized grades, but SS 347 generally offers better overall corrosion resistance than SS 321 in the 427–816°C range and performs somewhat better in strongly oxidizing environments up to 816°C. SS 347 also resists polythionic acid stress corrosion cracking in hydrocarbon service, making it a common choice for refinery and petrochemical applications.
What filler is used with SS 347 spiral wound gaskets?
Vermiculite is the standard high-temperature filler for SS 347 spiral wound gaskets. Vermiculite provides thermal stability and sealing performance in elevated-temperature service. Other fillers such as graphite or PTFE can be quoted on request depending on the medium and temperature.
What information do you need to quote an SS 347 vermiculite spiral wound gasket?
Send five items: nominal pipe size or specific gasket dimensions, pressure rating, filler material, inner and outer ring material, and quantity with destination port. If you have a flange drawing or existing gasket sample, attach it and we will match it directly.
Can you custom manufacture SS 347 vermiculite spiral wound gaskets?
Yes. Kaxite Sealing manufactures custom SS 347 vermiculite spiral wound gaskets in non-standard sizes, ASME B16.20 CG, CGI and flange-facing constructions, with carbon steel, SS 304 or SS 316 inner and outer rings. OEM private-label packaging and bulk quotations are available.
Need a bulk quotation for SS 347 vermiculite spiral wound gaskets?
Send your flange standard, nominal pipe size, pressure rating, filler requirement, ring material and quantity. Our sales engineers will reply with a quotation, lead time and available samples.
