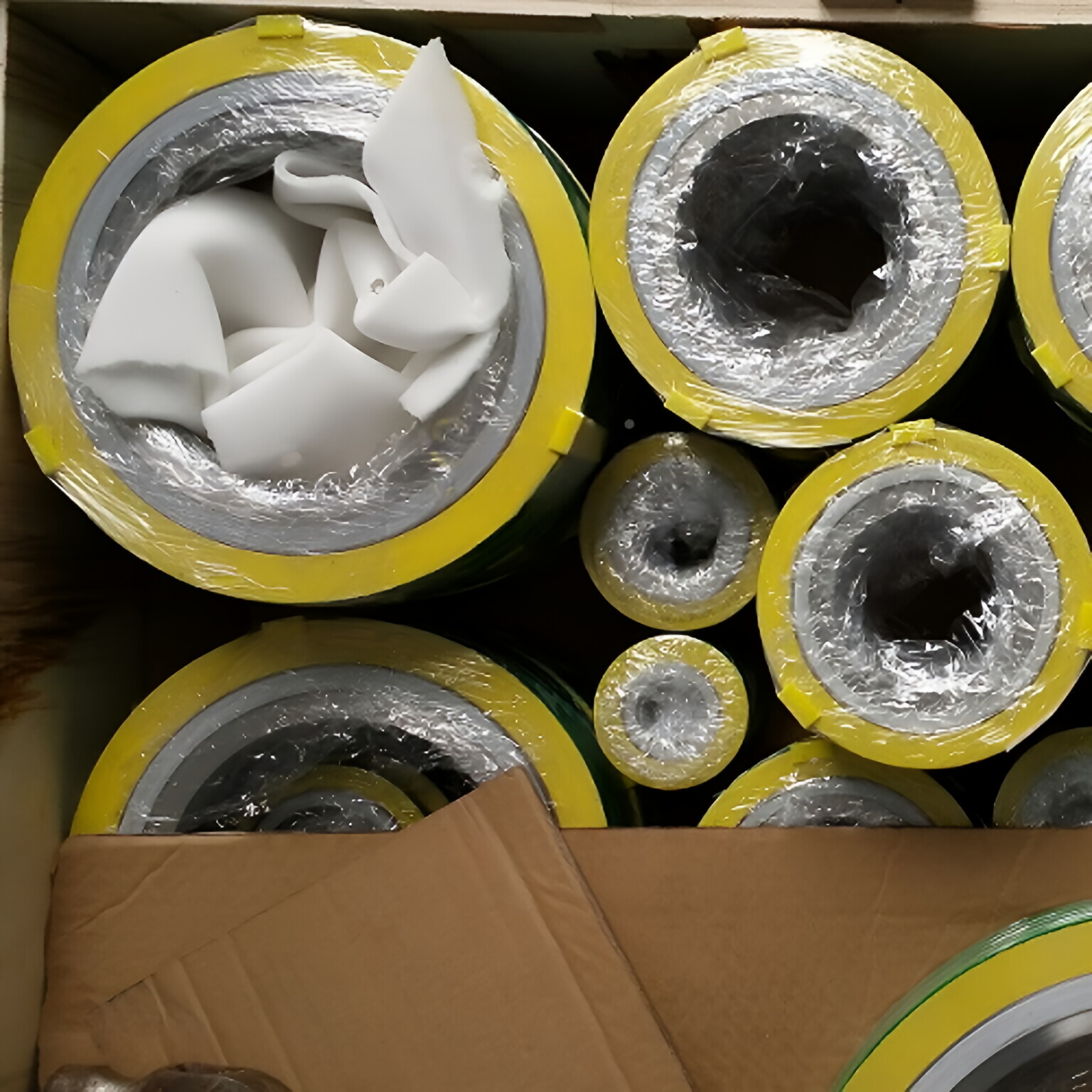

Inconel 625 Spiral Wound Gasket

Kaxite Sealing's Inconel 625 Spiral Wound Gasket is a high-performance sealing solution designed for extreme environments, offering superior corrosion resistance and durability in demanding industrial applications. This premium gasket features Inconel 625 alloy, ensuring reliable performance under high pressure and temperature, making it ideal for chemical, petrochemical, and aerospace sectors. Its innovative spiral design provides a tight, leak-free seal, giving users peace of mind with enhanced safety and efficiency. With exceptional flexibility and longer lifespan compared to standard gaskets, it reduces maintenance costs and downtime. Experience unmatched quality and trust Kaxite Sealing for reliable, long-lasting sealing solutions that exceed expectations.

Send Inquiry

Product Description

What is Inconel 625 Spiral Wound Gasket?

Inconel 625 spiral wound gasket is made of Alloy 625 steel strip and soft filler such as graphite and PTFE, it has high strength and outstanding aqueous resistance to chloride pitting and crevice corrosion. The strength of alloy 625 spiral wound gasket is primarily a solid solution effect from molybdenum and columbium.

Applications of Inconel 625 Spiral Wound Gasket

Inconel 625 spiral wound gasket can be used in aircraft ducting systems, jet engine exhaust systems, engine thrust-reverser systems, bellows and expansion joints, seawater components.

Corrosion Resistance of Inconel Alloy 625

Inconel alloy 625 has withstood many corrosive environments. In alkaline, salt water, fresh water, neutral salts, and in the air, almost no attack occurs. The nickel and chromium provide resistance to oxidizing environments. Nickel and molybdenum provide for resistance to nonoxidizing atmospheres.

Upon exposure to oxidising agents, Inconel 625 is protected naturally by its nickel-chromium matrix. Meanwhile, molybdenum protects the material against pitting corrosion. In 15% sulfuric acid, the material corrodes at a minimal rate of 0.188 mm per year.

Chemical Analysis of Inconel 625 (%)

Ni ≥	Fe ≤	Cr	Si ≤	Mo	Mn ≤	C ≤	Al ≤
58	5	20 - 23	0.5	8 - 10	0.5	0.1	0.4

Mechanical Properties of Inconel 625

Ultimate Tensile Strength (Mpa)	Elongation %	Yield Strength MPa	Density g/cm3
640	45	255	8.4

Inconel 625 Spiral Wound Gasket
