Discover the superior sealing performance of the Kaxite Sealing G-ST-P/S Rubber Steel Profile Gasket, engineered with durable rubber-steel composite materials for exceptional leak-proof protection in industrial applications. This high-performance gasket excels under extreme pressures and temperatures, offering long-lasting reliability and reduced maintenance costs. Ideal for engineers and manufacturers in oil & gas, automotive, and machinery sectors, it solves critical sealing challenges with precision. Its innovative profile design ensures a perfect fit and easy installation, setting it apart from standard gaskets. Enhance your operations with Kaxite Sealing’s trusted solution today—experience unmatched durability and peace of mind with every installation.

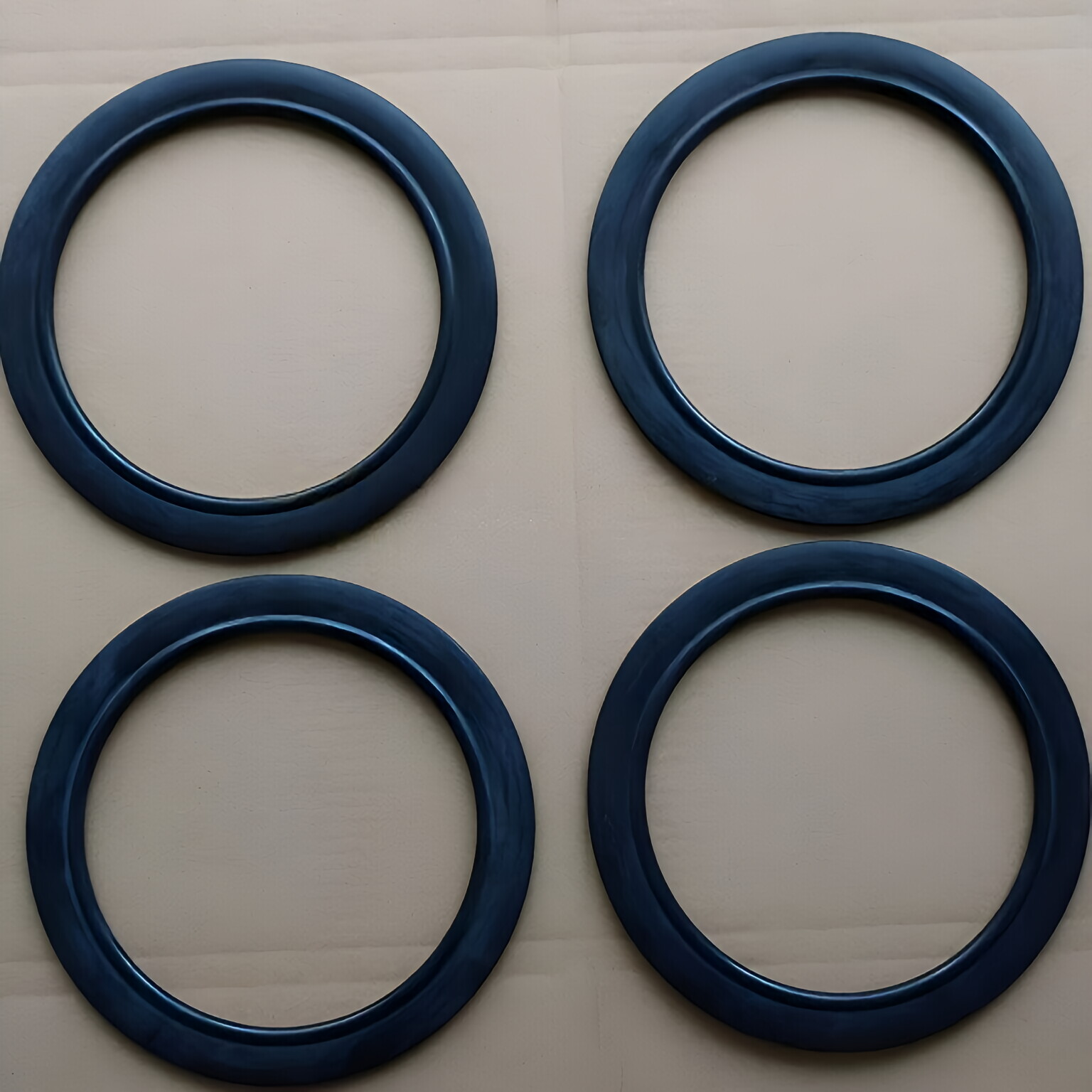

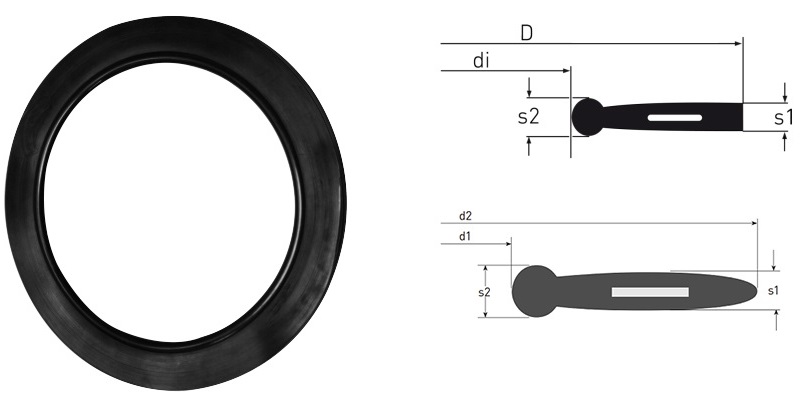

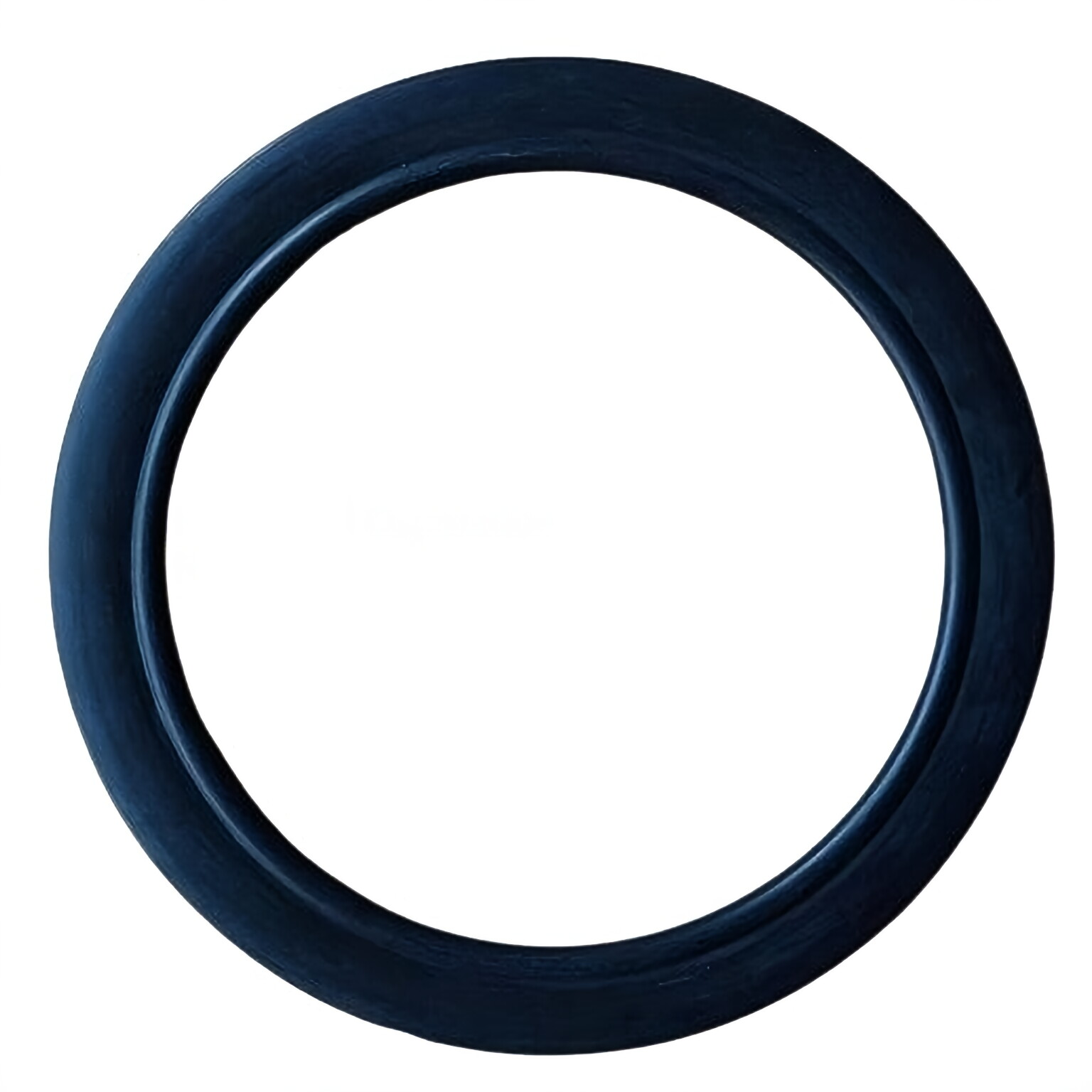

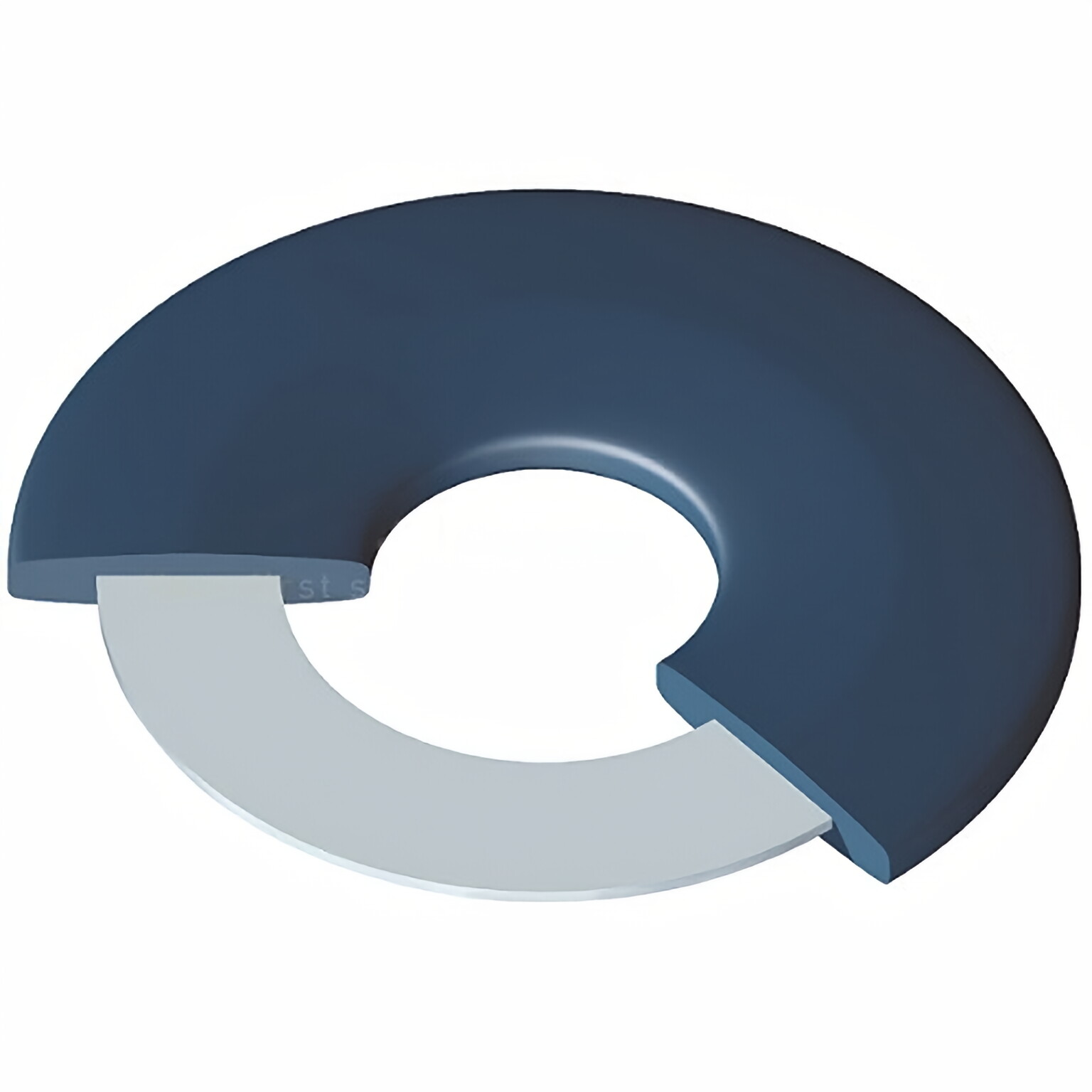

The G-ST-P/S rubber steel profile gasket is combined with an internal round cord ring and this O-ring is the most static sealing element. The performance of this O-ring is almost miraculous even without a cost-intensive groove. The G-ST-P/S rubber steel profile gasket combines the advantages of its individual parts. The flat steel-ring of the G-ST-P/S rubber steel profile gasket is corrosion protected by being vulcanized in, and the steel insert also increase safe blow-out and stability of the sealing system. This rubber steel gasket requires low bolting force or surface contact pressure and can be used in low-load design flanges with low bending strength (even plastic flanges).
These advantages are especially important in the case of a flange joint on thermoplastic pipes (PVC, PE, PP, PVDF).
Advantages of G-ST-P/S Rubber Steel Profile Gasket
The G-ST-P/S rubber steel profile gasket is easy to install and can be re-useable, it is a sealing gasket can be used under minimum bolt tightening and compensation for surface imperfections. Its angle differences can be compensated for more easily compared to simple flat gaskets, it also has wide sealing surface area.
Applications of G-ST-P/S Rubber Steel Profile Gasket
G-ST-P/S rubber steel profile gasket is used for typical pipeline design, plant construction, plastic material pipelines and equipment manufacturing, water, gas, sewage, oil and chemicals.
All kinds of Rubber-steel Metal Gaskets

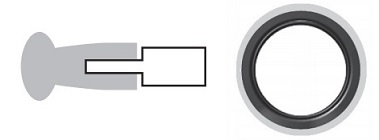

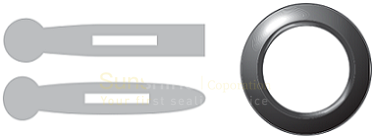

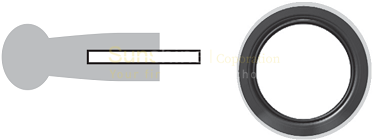

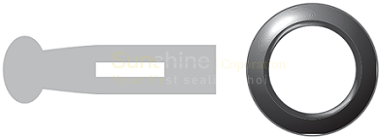

(1) G-ST-10 it is a very common classic rubber-steel gasket for various applications
(2) G-ST-PS-11 type it is a rubber-steel gasket used for various applications, top choice for joints connecting non-metallic (plastics or GRP) and steel flanges
(3) G-ST-PK-12 it is rubber-steel gasket used for plastic pressure pipelines made of PE and PP with plastic stub and loose flange. Flange dimensions similar to DIN 2501 PN10
(4) G-ST-P/KN-13 it is used for various applications, top choice for partially coated flanges and extreme operating conditions
(5) G-ST-P/OE-14 it is a customized rubber-steel gasket dimensions with a visible stainless steel insert.
(6) WG-01 it is a Simple, secure and cost-effective installation due to its stability, compared to non-reinforced rubber gaskets
(7) WG-02 it is a rubber-steel gasket which is Leak-proof even at the lowest tightening torques, making this rubber-steel gasket profile particularly suitable for plastic flange connections where there no high forces can be exerted.
(8) WS-01 is easy to replace the rubber sealing rings, meaning the rubber-steel gasket can be reused again and again.
(9) WL-01 is easy and safe installation, reduces the risk of installation errors caused by applying too high or uneven bolt tightening torque (the most common reason for the fail-ure of a rubber-steel gasket) simple replacement of the rubber sealing ring, making it reusable

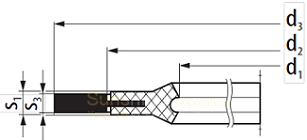

(10) WL-01H has all the features of the rubber-steel gasket Profile WG-04 and is easy to replace the rubber sealing rings and graphite layers, meaning the rubber-steel gasket can be reused again and again
Kaxite sealing has been in business for many years, providing our customers with exceptional service, quality products, and fast delivery times. Our team has a combined many years experience in the industry and we work hard to ensure our customers are completely satisfied with their orders. Please feel free to contact us at any time if you have any questions or would like to submit a quote. We welcome the opportunity to build relationships with new customers and exceed their expectations.
